Understanding Foundation Problems in the Midwest
Free educational resource covering foundation science, soil mechanics, structural settlement, repair methods, and local risk data for Kansas City and Des Moines homeowners.
What Does This Site Cover?
Foundation Integrity Authority covers the complete journey from soil behavior to structural repair. Every section is written by an engineer, backed by USDA soil data and local market research, and designed to help you understand what's happening beneath your home before you talk to any contractor.
The Complete Guide
The full problem-to-repair journey in one place. Start here if you're not sure what's wrong with your foundation.
Foundation Science
How clay soil, water pressure, and freeze-thaw cycles create the forces that move Midwest homes.
Symptom Reference
Crack types, sloping floors, sticking doors, chimney separation — what each symptom means and how serious it is.
Repair Methods
How push piers, helical piers, wall anchors, carbon fiber, polyjacking, and crack injection actually work.
Cost & Economics
Real cost ranges by method with Kansas City local pricing, insurance realities, and the financial impact of waiting.
Assessment Tools
Clay Risk Score by address and Structural Integrity Score quiz — free interactive assessments for your property.
Why Do Midwest Foundations Move?
The soil beneath Kansas City and Des Moines homes is in constant seasonal motion. In Kansas City, the Wymore-Ladoga soil complex contains 60 to 80 percent clay with a USDA "very high" shrink-swell rating — it expands when wet and contracts when dry, creating forces that crack and shift even well-built foundations. In Des Moines, glacial till from the Des Moines Lobe creates persistent hydrostatic pressure against basement walls. These are different mechanisms producing different symptoms, and understanding which one affects your home is the starting point for any response.
Kansas City's clay soil follows a predictable annual cycle. Spring rainfall (averaging 5.7 inches in May alone) saturates the clay and triggers expansion. Summer drought reverses the process, pulling support away from footings. Winter freeze-thaw at 36 inches depth adds another layer of movement. The result: progressive foundation settlement that worsens with each passing year.
Des Moines faces a different threat. The Dows Formation — 45 to 60 feet of glacially deposited clay-rich till — traps water against basement walls year-round. With a deeper frost line (42 inches versus 36 in KC) and 26 inches of annual snowfall feeding spring melt, Des Moines foundations experience persistent lateral pressure rather than KC's dramatic expansion-contraction swings.
Read the full foundation science explanationWhat Are the Most Common Foundation Problem Symptoms?
Foundation problems announce themselves through visible symptoms throughout your home. Cracks, sloping floors, sticking doors, and chimney separation each reveal different information about what's moving and how fast. The diagnostic reference covers each symptom in detail with severity assessments.
Foundation Cracks

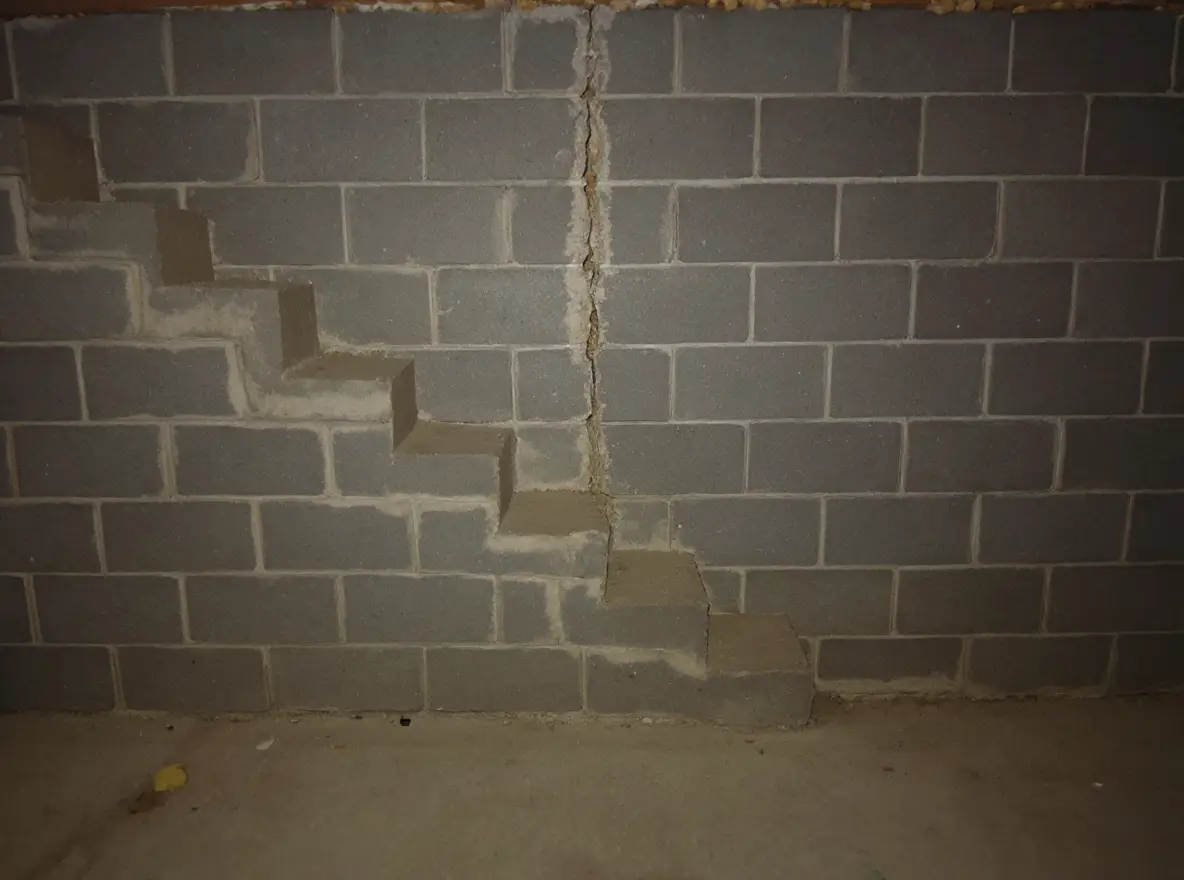

Stair-step, horizontal, vertical, and diagonal crack patterns — what each type reveals about structural movement.
Sloping Floors
When floors slope from foundation settlement rather than structural framing issues.
Sticking Doors & Windows
How frame distortion from foundation movement causes binding and misalignment.
Chimney Separation
Independent chimney foundations settle at different rates than the main structure.
How Are Foundation Problems Repaired?
Different failure modes require different repair systems. Settlement from soil compression requires piering. Bowing walls from lateral pressure require anchors or reinforcement. Sinking slabs require foam injection. The right method depends on diagnosing the actual failure mechanism first.
Push Piers

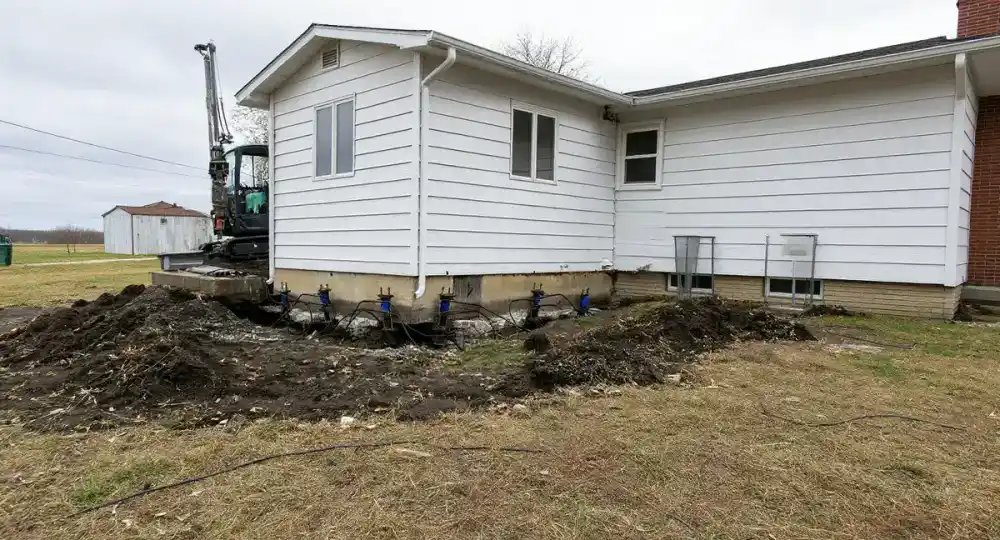

Hydraulic steel tubes driven to bedrock to stabilize and lift settling foundations.
Helical Piers
Screw-in steel shafts that reach load-bearing soil for new construction and lighter structures.
Wall Anchors
Earth anchor systems that counteract lateral soil pressure on bowing basement walls.
Polyjacking
Expanding polyurethane foam injected beneath sunken slabs to lift and stabilize concrete.
How Does Foundation Risk Vary by Location?
Foundation risk changes at the suburb level. Soil composition, housing era, and local geology create different vulnerability patterns across the Kansas City and Des Moines metros. The Atlas provides suburb-specific risk profiles based on USDA soil survey data and local housing stock analysis.
What Does Foundation Repair Actually Cost?
Foundation repair costs vary by method, scope, and location. The cost reality page provides Kansas City local pricing for every repair method, explains what drives price differences, and covers insurance, financing, warranty transferability, and the financial impact of delaying repairs. All cost data on this site lives in one place — so the numbers are consistent and current.
View foundation repair cost dataWho Created This Resource?
Foundation Integrity Authority is created and maintained by JLB Foundation Repair and Basement Waterproofing, in partnership with The Nashville Business Foundry. All content is written by Hank Yarbrough, Engineer and Analyst at JLB, drawing on USDA soil survey data, local housing market research, and direct field experience with Kansas City and Des Moines foundations.
The goal is education first. When you're ready for professional help, we're here — but the information on this site is designed to be useful whether you hire us or not. No conversion forms appear on educational pages. No phone numbers are displayed. The content stands on its own.
