Carbon Fiber Straps: Basement Wall Reinforcement System

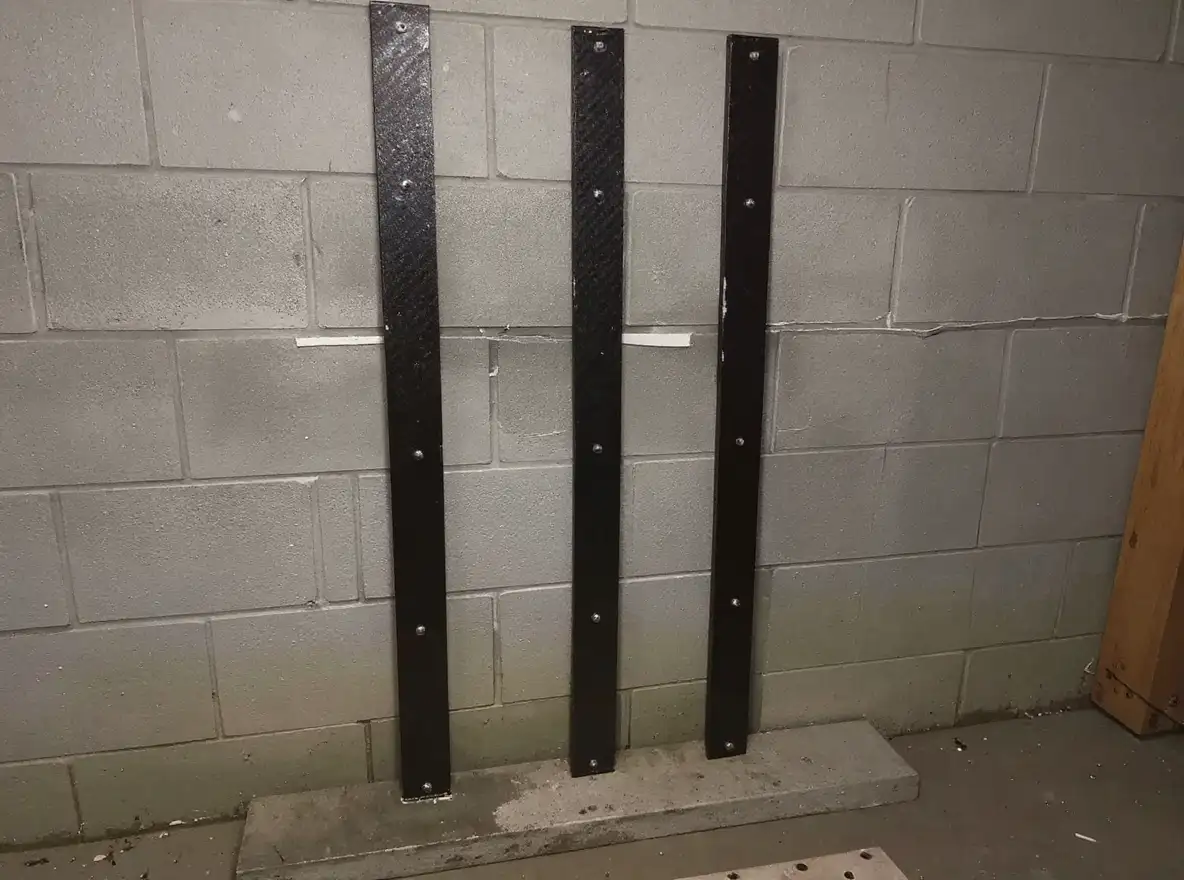

Carbon fiber straps are thin, high-tensile reinforcement strips that bond directly to the interior surface of a basement wall to prevent further inward bowing and cracking. Each strap is a composite reinforcement system — unidirectional carbon fiber fabric embedded in a structural epoxy matrix that adheres to the masonry surface. The carbon fiber provides tensile strength that the wall itself lacks, resisting the lateral soil pressure that pushes the wall inward. Once cured, the epoxy matrix bonding creates a rigid laminate that transfers force between the wall surface and the fiber continuously along the strap's full height.

Carbon fiber straps are the least invasive wall stabilization method available, but they are appropriate only for walls with early-stage displacement — typically under 2 inches of inward bow. Unlike wall anchors, carbon fiber straps do not require exterior excavation and cannot pull a wall back toward its original position. They hold the wall where it is and prevent further movement. This wall deflection limit is the most important factor in determining whether carbon fiber is appropriate for your situation. For walls that have bowed beyond 2 inches, wall anchors or wall replacement become the necessary options.

How Does a Carbon Fiber Strap Reinforce a Basement Wall?

Carbon fiber straps work by adding tensile strength to a wall surface that is failing in tension — the same engineering principle behind rebar in concrete, applied externally. When lateral soil pressure pushes a basement wall inward, the interior face of the wall stretches (tension) while the exterior face compresses. Concrete and masonry are strong in compression but weak in tension. The wall cracks on the tension side — the interior — because the material cannot stretch enough to accommodate the bending force. Carbon fiber has a tensile strength rating roughly ten times that of structural steel by weight, making it effective at resisting the stretching force on the wall's interior face.

The epoxy matrix bonding is what makes the system work as an integrated unit rather than a strap sitting on a wall. Structural epoxy penetrates the pore structure of the masonry substrate and cures to a rigid bond that distributes the wall's tensile stress into the carbon fiber. The fiber saturation resin fully encapsulates the carbon fiber fabric, creating a laminate composite. This composite acts as a continuous reinforcement that spans the full height of the wall — from the floor slab connection at the bottom to the floor joist connection at the top.

The mechanical anchors at the top and bottom of each strap are structurally essential — they transfer the carbon fiber's tensile load into the home's structural frame. Without these anchor points, the strap could peel away from the wall surface under sustained lateral loading. The top anchor connects to the sill plate or floor joist, and the bottom anchor connects to the floor slab or footing. These connections ensure the strap's restraining force is carried by the entire structural system, not just the epoxy-to-masonry bond.

What Problems Can Carbon Fiber Straps Fix?

Carbon fiber straps stabilize basement walls showing early signs of lateral pressure damage — horizontal cracks, minor inward bowing, and vertical cracking caused by wall flexion. The straps prevent the wall from deflecting further inward under continued soil pressure. For walls that are cracked but have not yet developed measurable bowing, carbon fiber reinforcement applied at this early stage can prevent the crack from ever progressing to structural displacement.

Carbon fiber is particularly effective on poured concrete walls with hairline to moderate horizontal cracking and less than 2 inches of measurable bow. Poured concrete provides a smooth, consistent substrate for epoxy adhesion, and the wall's monolithic construction means the carbon fiber composite can span the crack and distribute tensile force evenly. Block walls are also candidates, though the epoxy bond must bridge mortar joints, and the substrate preparation protocol requires more attention to ensure consistent adhesion across dissimilar surfaces.

Carbon fiber straps also reinforce walls where vertical cracks indicate flexural stress without lateral displacement. Not every wall crack signals bowing — some vertical cracks appear when a long wall flexes under temperature changes or minor soil pressure variations. Carbon fiber straps spanning these cracks prevent them from widening and restore the wall's ability to act as a continuous structural element.

What Are the Limitations of Carbon Fiber Straps?

Carbon fiber straps cannot push a bowing wall back to its original position — they stabilize the wall at its current deflection and prevent further inward movement. If your wall has bowed 1.5 inches inward, carbon fiber straps will hold it at 1.5 inches. They will not reduce that displacement. Homeowners who want the wall returned closer to plumb need wall anchors, which can be progressively tightened to gradually straighten the wall over time.

Carbon fiber is not appropriate for walls that have displaced beyond approximately 2 inches inward. At greater displacements, the wall's geometry has changed enough that surface-applied reinforcement cannot reliably resist the ongoing lateral force. The bending moment in a wall increases with deflection — a wall that has already moved 3 inches requires substantially more restraining force than one at 1 inch. Wall anchors or steel I-beams provide the mechanical leverage needed for higher-displacement walls.

Carbon fiber straps do not address foundation settlement, sinking floor slabs, or structural problems caused by vertical soil movement. If your symptoms include stair-step cracks, sloping floors, or chimney separation, the problem is vertical displacement requiring pier systems — not lateral wall pressure requiring surface reinforcement. Carbon fiber reinforcement is exclusively a lateral-load solution.

Surface condition of the wall matters — carbon fiber cannot be reliably bonded to deteriorating, spalling, or crumbling masonry. The entire system depends on the epoxy-to-substrate bond. If the wall surface is powdering, delaminating, or has lost its structural integrity at the surface layer, the carbon fiber strap will separate from the wall under load regardless of the strap's tensile capacity. A structural engineer evaluates substrate condition as part of the feasibility assessment.

When Is Carbon Fiber the Right Repair Method?

Carbon fiber straps are the right repair when wall displacement is under 2 inches, the wall substrate is sound, and the homeowner prioritizes minimal disruption and interior-only work. The entire installation happens inside the basement with no exterior excavation, no yard disturbance, and no heavy equipment. The straps add less than a quarter inch of thickness to the wall surface and can be painted over after curing, making them effectively invisible in a finished basement.

Carbon fiber is the preferred first intervention for walls showing horizontal cracking with no measurable deflection or with deflection under 1 inch. At this stage, the lateral pressure has exceeded the wall's capacity but has not yet created significant displacement. Reinforcing the wall now prevents the deflection from progressing to the point where more aggressive and expensive methods become necessary.

Properties with limited exterior access — zero-lot-line homes, homes with adjacent driveways or patios, or homes with extensive landscaping — benefit from carbon fiber because no exterior work is required. Wall anchors require excavation 10 to 15 feet from the foundation wall. When that space is occupied by a neighbor's property, a municipal sidewalk, or a mature tree root system, carbon fiber may be the only wall stabilization option that does not involve removing exterior structures.

How Do Kansas City and Des Moines Conditions Affect Carbon Fiber Strap Performance?

Carbon fiber straps are appropriate for Des Moines basement walls showing early-stage lateral pressure from glacial till — typically less than 2 inches of inward displacement. The persistent hydrostatic pressure in the Des Moines metro means carbon fiber must resist a continuous lateral load rather than the cyclical loading pattern seen in KC. Strap spacing calculation for Des Moines installations often results in tighter spacing (4 feet on center rather than 6) because the load is sustained year-round and the 42-inch frost depth adds freeze-thaw force on top of the hydrostatic baseline.

In Kansas City, the seasonal nature of shrink-swell pressure from the Wymore-Ladoga clay means carbon fiber can work well when displacement is caught early, but the recurring force cycles make monitoring essential. KC homeowners with carbon fiber straps should check their walls annually for any sign of increased deflection. The clay's expansion during wet spring months — KC averages 5.7 inches of rainfall in May — applies the peak lateral force. If monitoring shows the wall continuing to deflect despite the straps, the displacement has likely exceeded what surface reinforcement can control, and wall anchors should be evaluated.

Block walls built between the 1940s and 1960s are common carbon fiber candidates in Kansas City — 30.72% of KC homes from this era have block basement walls that are vulnerable to lateral pressure cracking. These older block walls were built with less reinforcement than current code requires and have endured decades of seasonal clay cycling. Carbon fiber strap installation on block walls requires careful substrate preparation protocol at each mortar joint to ensure the epoxy bonds consistently across the alternating block and mortar surfaces. For cost information on carbon fiber versus other stabilization methods, see the cost and economics page.

How Are Carbon Fiber Straps Installed Step by Step?

Carbon fiber strap installation is completed in a single day for most residential walls and takes place entirely inside the basement — no exterior excavation or yard access is required. The process depends heavily on surface preparation quality, which accounts for roughly half the total installation time. Here is the full installation sequence.

Wall surface preparation. The wall surface is ground smooth at each strap location using a concrete grinder. All paint, sealant, efflorescence, loose mortar, and surface contaminants are removed to expose clean masonry substrate. This substrate preparation protocol is the most critical step — the epoxy bond strength depends entirely on a clean, profiled surface. On block walls, mortar joints receive additional grinding to create a uniform bonding surface.
Strap layout and spacing marking. Strap positions are marked on the wall per the engineer's strap spacing calculation — typically 4 to 6 feet on center depending on wall length, deflection measurement, and estimated lateral pressure. Each strap position runs vertically from the floor slab to the top of the wall where the mechanical anchor will connect to the floor framing.
Structural epoxy base coat application. A thick layer of two-part structural epoxy is applied to the wall surface at each strap position. The epoxy coat covers the full width and length of the strap footprint. The fiber saturation resin fills pores and surface irregularities in the masonry, creating both a chemical and mechanical bond with the substrate.

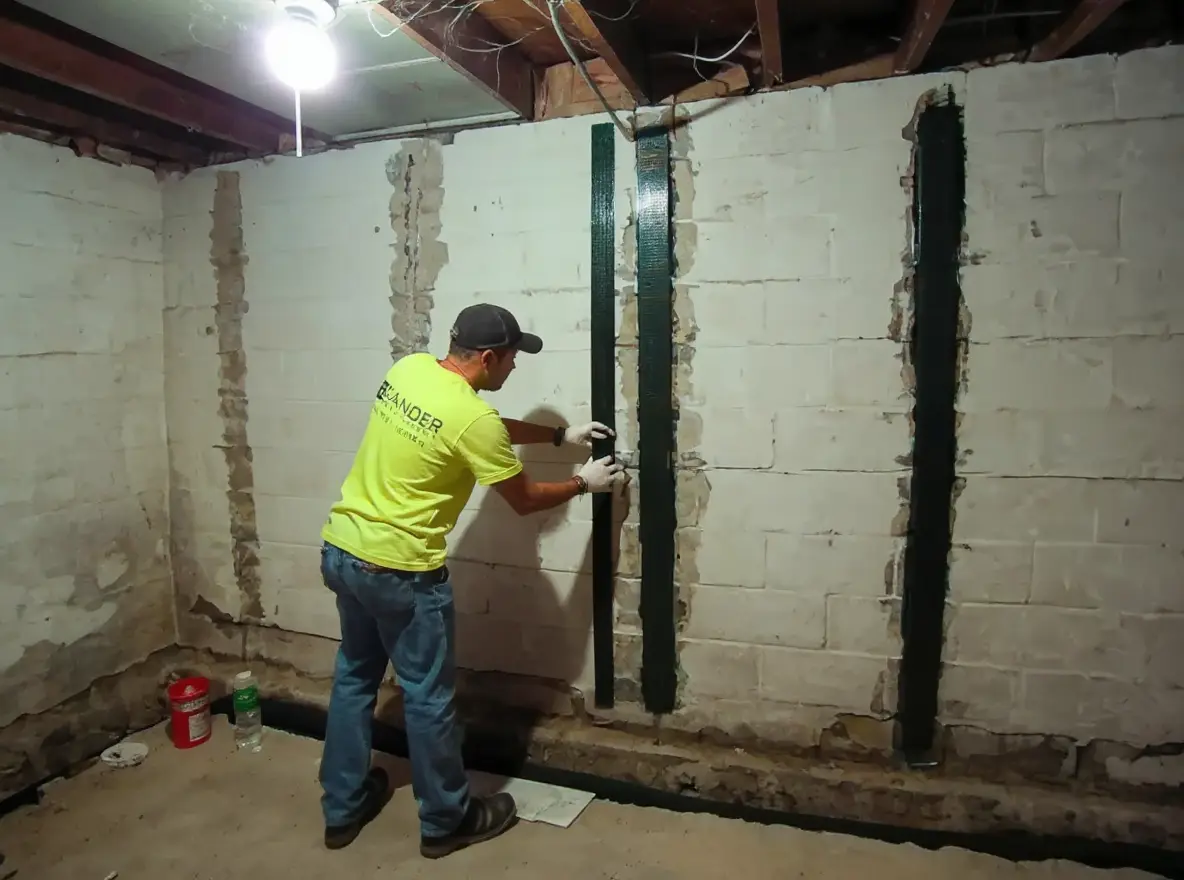

Carbon fiber strap placement. The unidirectional carbon fiber fabric is pressed into the wet epoxy starting at the base of the wall and working upward. A ribbed roller eliminates air pockets between the fiber and the epoxy, ensuring continuous contact. Full fiber-to-resin contact across the entire strap length is essential for the composite reinforcement system to function as designed.
Epoxy saturation top coat. A second layer of structural epoxy is applied over the installed carbon fiber, fully encapsulating the fabric. This creates the sandwich composite — epoxy base, carbon fiber, epoxy top — that functions as a rigid reinforcement laminate. The epoxy matrix bonding transforms the flexible carbon fabric into a stiff structural element bonded to the wall face.
Mechanical anchor installation at top and bottom. Steel angle brackets are fastened at the top of each strap (connecting to the sill plate or floor joist) and at the bottom (connecting to the floor slab or footing). These anchors prevent strap peel and transfer the carbon fiber's tensile force into the building's structural frame. Anchor fasteners are sized for the calculated strap load.
Cure period and quality verification. The epoxy cures for 24 to 48 hours to reach full structural capacity. After curing, each strap is inspected for complete fiber saturation, bond integrity, and proper anchor connection. The cured straps can be painted to match the wall color without affecting performance. The installed system requires no ongoing maintenance or adjustment.

What Separates a Quality Carbon Fiber Installation from a Poor One?

Surface preparation quality is the single biggest differentiator between a carbon fiber installation that performs for decades and one that fails within years. A contractor who spends minimal time grinding and cleaning the wall surface before applying epoxy is creating a system that will eventually delaminate. The substrate preparation protocol should take at least as long as the strap application itself. Inspect the wall after grinding — the surface should be uniformly clean, dust-free, and show exposed aggregate or bare masonry with no paint, sealant, or efflorescence remaining.

The carbon fiber product itself should have a documented tensile strength rating from an independent testing laboratory — not just a manufacturer's claim. Ask the contractor for the product data sheet showing the carbon fiber's tensile strength, modulus of elasticity, and fiber weight per square yard. Reputable products will reference ASTM D3039 testing standards. The strap should be unidirectional carbon fiber — meaning all fibers run vertically along the strap's length — because the lateral pressure force acts perpendicular to the wall, and the strap must resist that force along its vertical axis.

Mechanical anchors at both the top and bottom of every strap are not optional — they are structurally essential. Some installers skip the floor-to-joist anchoring and rely solely on the epoxy bond. This is inadequate for long-term performance because sustained lateral pressure can eventually exceed the adhesive bond strength, causing the strap to peel from the wall starting at the edges. Properly installed steel brackets at the top and bottom transfer the load path through the building frame, making the bond a secondary rather than primary load path.

An engineering report should specify strap width, spacing, product type, and the maximum wall deflection the system is designed to resist. Cookie-cutter installations that use identical spacing on every wall regardless of length, deflection, or soil conditions are not engineered to the specific problem. The strap spacing calculation should reflect the structural engineer's analysis of your wall's geometry and the estimated lateral pressure from the site-specific soil profile.
