Foundation Wall Replacement: When Repair Isn't Enough

Foundation wall replacement is the last-resort repair — it removes a wall that has failed beyond what any stabilization method can fix and rebuilds it with reinforced concrete. Most foundation problems can be addressed with piers, wall anchors, or carbon fiber straps. Wall replacement becomes necessary when the wall material itself has deteriorated past the point of structural usefulness, or when displacement has exceeded the wall failure threshold where stabilization hardware can no longer restore adequate bearing capacity. It is the most disruptive and expensive foundation repair, and it is also the only option that produces a structurally new wall.

This page covers the structural criteria that distinguish a wall needing replacement from one that can still be stabilized, the bearing wall replacement process from shoring through backfill, and the quality markers that separate competent replacement work from shortcuts. If you are unsure whether your wall has reached the replacement threshold, the severity indicators below will help frame that determination. For cost data, see the cost and economics page.

How Does Foundation Wall Replacement Actually Work?

Wall replacement works by temporarily bypassing the structural loads a foundation wall carries, removing the failed wall entirely, and pouring a new reinforced concrete wall in its place. The temporary shoring system is the critical first step — it transfers the weight of floors, roof, and any bearing walls above to temporary steel or timber supports so the failed wall can be safely demolished. Without proper structural load bypass, removing a foundation wall would allow the structure above to collapse or shift permanently.

The replacement wall is engineered to modern standards, which in most cases significantly exceed the original construction. Pre-1960s block and stone foundation walls were often unreinforced, relying on mortar bond and wall thickness alone for structural capacity. A replacement wall uses steel-reinforced concrete with a specified reinforcement schedule, proper footing connections, and exterior waterproofing — features that most original walls in the Kansas City and Des Moines housing stock never had.

The entire process typically takes 10 to 15 working days per wall section, depending on wall length, access conditions, soil type, and weather. Excavation and backfill represent the majority of the labor, while concrete curing drives the minimum timeline. The reinforced concrete pour itself takes less than a day, but the concrete requires 7 days minimum before forms can be removed and 28 days to reach design strength.

What Problems Does Wall Replacement Actually Fix?

Wall replacement fixes walls that have failed structurally — where the wall material can no longer carry the vertical loads from above or resist the lateral loads from soil outside. This includes block walls with fractured cores and disintegrating mortar, stone walls that have lost their structural bond, poured concrete walls with through-wall displacement exceeding 4 inches, and walls where freeze-thaw cycles have spalled the concrete to the point of exposed rebar and compromised cross-section.

It also fixes the secondary problems that severe wall failure creates: chronic water infiltration through displaced joints, insect and radon entry pathways through structural gaps, and loss of the wall's role as a load-bearing element in the home's structural system. A wall bowed 4 or more inches inward has shifted its load path — the vertical loads from above are no longer traveling straight down through the wall cross-section but are creating eccentric loading that accelerates further failure. Stabilizing a wall in this condition does not restore its original load-carrying geometry.

What Problems Does Wall Replacement NOT Solve?

Wall replacement does not address the soil conditions that caused the original wall to fail — it only replaces the damaged structural element. If hydrostatic pressure from poor drainage caused the original wall to bow inward, the new wall will face the same pressure unless drainage is corrected during the replacement process. If the original footing sits on unstable soil and the footing is not replaced or underpinned, settlement can affect the new wall just as it affected the old one.

Wall replacement does not fix settlement on other walls or in other areas of the foundation. If the replaced wall was settling because of soil compression beneath its footing, adjacent walls on the same soil may also be at risk. A replacement project should include a full foundation assessment — not just the visibly failed wall — to identify whether the failure is isolated or part of a broader pattern. For details on how soil conditions drive failure, see the foundation science page.

It does not eliminate the need for ongoing maintenance. Even a new reinforced concrete wall requires proper grading, gutter discharge management, and drainage to perform as designed over decades. The wall is new; the soil around it is not.

When Is Wall Replacement the Right Call Instead of Stabilization?

Wall replacement is appropriate when any of these conditions exist: inward displacement exceeding 4 inches, wall material that has structurally deteriorated (crumbling block, disintegrating mortar, spalling concrete), or a wall that has rotated off its footing. Below the 4-inch displacement threshold, wall anchors can typically stabilize the wall and, with periodic tightening, gradually straighten it over time. Below 2 inches, carbon fiber straps can prevent further movement at significantly lower cost and disruption.

Material deterioration is an independent trigger — a wall can have minimal displacement but still need replacement because the wall material itself is failing. Stone foundations with deteriorated mortar throughout, concrete block walls with fractured cores revealed by water seepage at every course, and poured concrete walls with extensive spalling from decades of freeze-thaw exposure all qualify. The wall may appear straight, but it has lost the internal structural capacity to carry loads safely.

A structural engineer's evaluation is essential for borderline cases. The distinction between "stabilize and monitor" and "replace" often depends on factors a homeowner cannot assess visually: internal block core condition, rebar corrosion state, footing integrity, and load distribution from the structure above. An independent engineer's report protects the homeowner from unnecessary replacement and from inadequate stabilization of a wall that truly needs to be rebuilt.

Why Are Wall Replacements Common in Kansas City and Des Moines?

Kansas City's pre-1939 homes — 21.56% of the housing stock — with stone or concrete block foundations are the most common candidates for wall replacement in the metro area. These older wall materials deteriorate over decades of exposure to the Wymore-Ladoga clay's shrink-swell cycling. Stone foundations rely entirely on mortar bond for structural integrity, and when that mortar deteriorates after 80-plus years of seasonal moisture variation, the wall loses its ability to resist lateral earth pressure. Block foundations from this era used weaker mortar mixes and were rarely reinforced with steel.

In Des Moines, block walls built on glacial till that have bowed beyond 4 inches from persistent hydrostatic pressure often require replacement rather than stabilization. The glacial till's low permeability creates sustained water pressure against basement walls — unlike Kansas City's intermittent shrink-swell pressure, Des Moines walls face relatively constant lateral loading year-round. This persistent pressure accelerates displacement once a wall begins to move, and walls that might have stabilized with anchors at 2 inches can progress to 4 inches within a few seasonal cycles if left unaddressed.

Both markets share a frost depth that adds to foundation wall stress. Kansas City's 36-inch frost depth and Des Moines' 42-inch frost depth subject the upper portion of foundation walls to seasonal freeze-thaw cycling that degrades concrete and mortar from the exterior face inward. Older walls that were not waterproofed — which includes most pre-1960s construction — absorb moisture that freezes, expands, and progressively spalls the wall surface over decades.

What Are the Steps in a Foundation Wall Replacement?

Wall replacement follows an eight-step sequence that must happen in order — skipping or rushing any step creates risks that range from structural inadequacy to worker safety hazards. Each step below represents a critical phase where quality and specification compliance determine whether the finished wall will perform for decades or develop problems within years.

1. Step 1: Structural Engineering Assessment. A licensed structural engineer evaluates the wall, confirms replacement is necessary, and designs the replacement wall. The design specifies concrete strength (typically 4,000 PSI minimum), reinforcement schedule (rebar size, spacing, and placement), footing dimensions, and any special provisions for site-specific soil conditions.

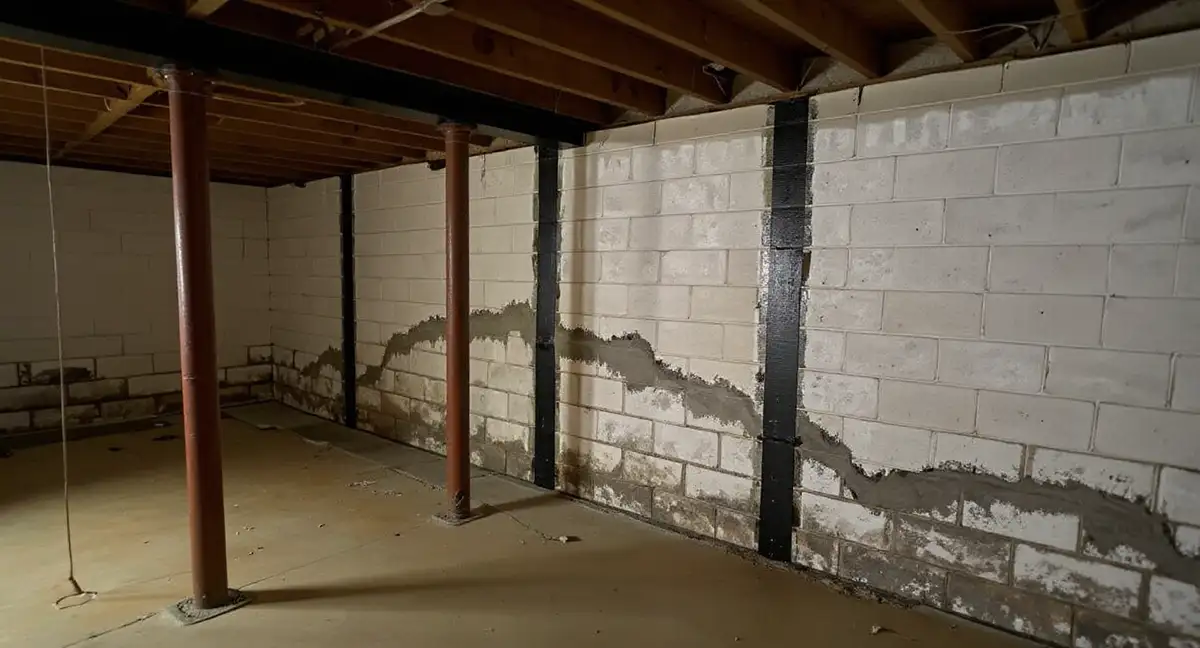

2. Step 2: Temporary Shoring Installation. A temporary shoring system transfers all structural loads from the wall being replaced to temporary supports. Steel posts, timber cribbing, or engineered shoring frames carry the weight of the floor system, roof, and any bearing walls above. The shoring must remain in place until the new wall reaches design strength.

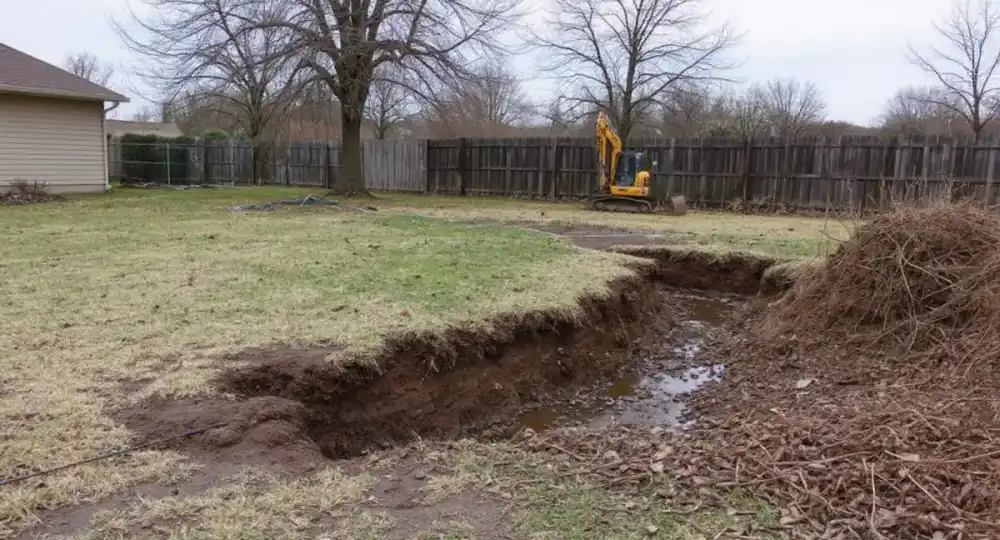

3. Step 3: Exterior Excavation. Soil along the failed wall is excavated to the bottom of the existing footing, exposing the full wall face. Excavation width must accommodate formwork, waterproofing application, and backfill compaction equipment. Utility lines are located, marked, and protected or temporarily rerouted.
4. Step 4: Controlled Wall Demolition. The failed wall is removed in a controlled wall demolition sequence, working in sections to prevent uncontrolled collapse. Demolition debris is removed from the site. The remaining footing surface is cleaned and inspected for the next phase.
5. Step 5: Footing Inspection and Repair. The existing footing is evaluated against the engineer's specifications. Sound footings are prepared for the new wall connection. Failed or undersized footings are removed and replaced. Dowels are drilled and epoxied into retained footings to tie the new wall to the existing footing.
6. Step 6: Formwork and Reinforcement. Concrete forms are set to the engineered wall dimensions. Steel rebar is placed per the reinforcement schedule, with proper cover distances from the form faces, correct bar spacing, and adequate lap splice lengths at all connections. The reinforcement is inspected before the pour.
7. Step 7: Reinforced Concrete Pour. Structural-grade concrete is placed in the forms, consolidated with vibration equipment to eliminate voids and ensure full encasement of the rebar. The pour is completed in a single continuous placement to avoid cold joints — weak planes where partially cured concrete meets fresh concrete.
8. Step 8: Curing, Waterproofing, and Backfill. The concrete cures under controlled conditions for a minimum of 7 days before form removal. Waterproofing membrane and drainage board are applied to the exterior face. Backfill is placed in 6-to-8-inch lifts, with each lift mechanically compacted to the backfill compaction specification (typically 95% standard Proctor density) to prevent future settlement of the backfill against the new wall.

How Do You Recognize Quality Wall Replacement Work?

Quality wall replacement is defined by engineering documentation, material specifications, and process controls — not by how the finished wall looks. A smooth, clean wall surface can hide inadequate reinforcement, low-strength concrete, insufficient curing time, or poorly compacted backfill. The quality markers that matter are verifiable and should be part of every wall replacement project.

A structural engineer's design and post-construction inspection are the strongest quality indicators. The engineer specifies what the wall must be; their post-construction inspection verifies that it was built to specification. Contractors who resist independent engineering oversight are a warning sign. The engineer works for the homeowner, not the contractor, and their role is to confirm the finished work matches the design.

• Reinforcement photos: The contractor should photograph the rebar placement inside the forms before the pour, showing bar size, spacing, and cover. These photos verify what is inside the finished wall — once concrete is placed, reinforcement cannot be visually confirmed.
• Concrete delivery tickets: Each concrete truck delivers a batch ticket showing the mix design, including PSI rating, slump, and admixtures. These tickets verify that the concrete placed meets the engineer's specification.
• Compaction testing: Backfill compaction should be tested by an independent geotechnical firm, not self-reported by the contractor. Compaction test results verify that backfill was placed to specification, preventing future settlement that could redirect water toward the new wall.
• Waterproofing documentation: The waterproofing system — membrane type, drainage board, and connection to the footing drain — should be documented with photos before backfill covers it permanently.

Frequently Asked Questions About Foundation Wall Replacement

Can I sell my house with foundation problems?

Yes, but foundation problems must be disclosed in most states, including Missouri, Kansas, and Iowa. Unresolved structural issues reduce sale price, limit buyer financing options, and extend time on market. Most real estate professionals recommend completing repairs before listing — a transferable warranty from the repair contractor adds buyer confidence and protects the sale price.

How does frost depth affect foundations in the Midwest?

Frost depth determines how deep foundation footings must be placed to avoid frost heave — upward movement caused by freezing soil expanding beneath the footing. In Kansas City, the frost line sits at 36 inches. In Des Moines, it reaches 42 inches. Any replacement wall must be built on footings that extend below the local frost depth, or the new wall will be vulnerable to the same heave forces that damage shallow footings every winter.

Why do so many Kansas City homes have foundation problems?

Kansas City sits on the Wymore-Ladoga soil complex, which contains 60-80% clay and carries a 'very high' shrink-swell rating from the USDA. Seasonal moisture variation — from 5.7 inches of rain in May to 1.5 inches in January — drives annual cycles of soil expansion and contraction that push against foundation walls and pull support from beneath footings. Older homes built before modern foundation engineering practices are most affected.

How much does foundation repair cost in Kansas City?

Foundation repair costs vary significantly by method, project scope, soil conditions, and access. Wall replacement is among the most expensive foundation repairs due to the excavation, shoring, demolition, and reconstruction involved. For current pricing data including per-unit costs, typical project ranges, and cost factors specific to Kansas City and Des Moines, see our cost and economics page at /cost/.

What is the best foundation repair method?

There is no single best method — the right repair depends on the specific failure mode. Wall replacement is only appropriate when the wall material has deteriorated or displaced beyond what stabilization methods like wall anchors or carbon fiber straps can address. For walls with less than 2 inches of bowing, carbon fiber straps may suffice. For 2-4 inches, wall anchors are typically appropriate. Beyond 4 inches or when the wall material itself has failed, replacement becomes the necessary repair.
