Helical Piers: How Screw-In Foundation Support Works

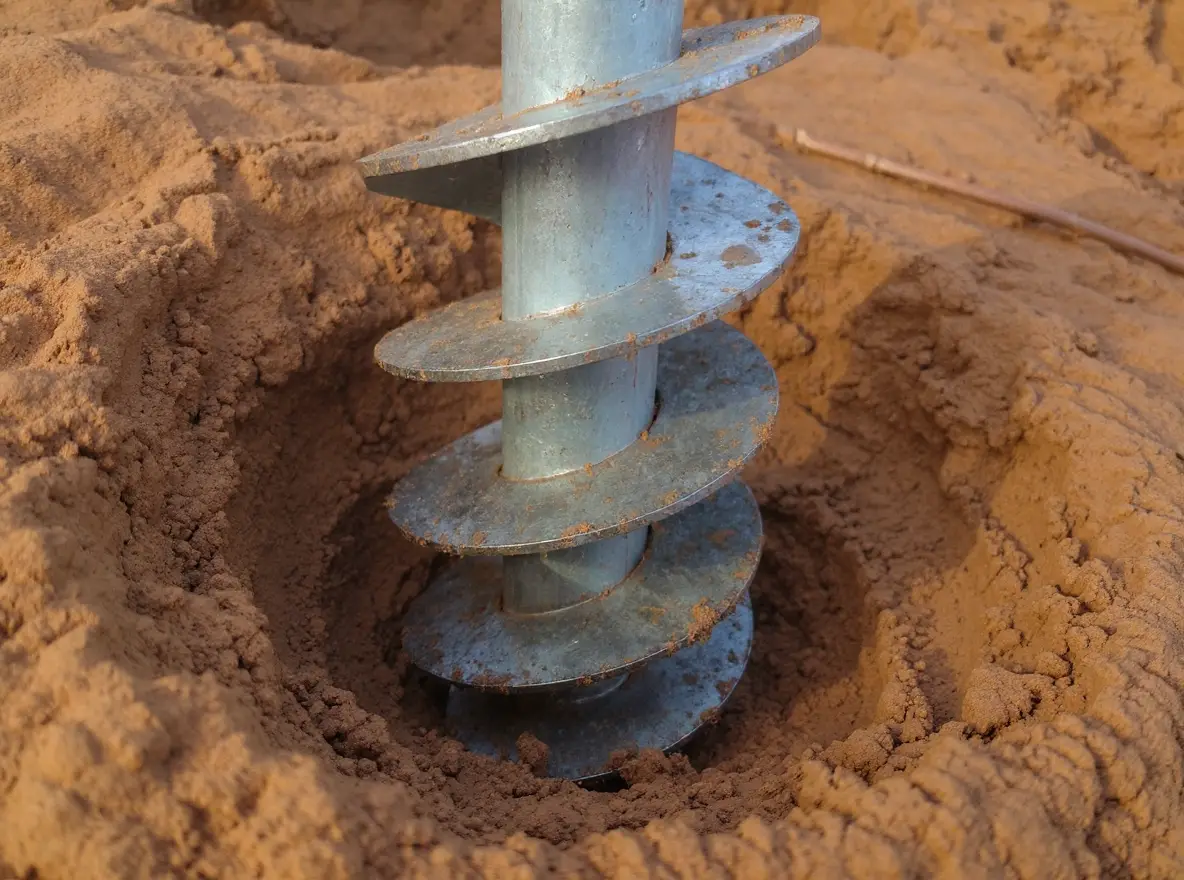

A helical pier is a steel shaft with welded helix plates that a hydraulic motor screws into the ground until it reaches soil or rock capable of supporting your foundation's weight. The helix plates — shaped like circular blades pitched at a consistent angle — pull the shaft downward during rotation, displacing soil rather than compressing it. Once the pier reaches bearing depth, a steel bracket transfers the structure's load from the failing surface soil to the stable stratum below.

Helical piers belong to a family of deep foundation systems called screw piles, used in commercial and civil engineering since the 1830s. Residential foundation repair adopted helical technology in the 1980s when manufacturers scaled down commercial screw pile designs for lighter residential loads. Today, helical piers are one of the two primary piering methods for settling homes — the other being push piers, which use a different installation mechanism.

How Does a Helical Pier Actually Work?

A helical pier works by converting rotational torque into axial bearing capacity — the harder it is to turn the shaft, the more weight the pier can support. Each helix plate acts as an individual bearing surface. As the crew rotates the shaft into the ground, each plate advances through soil at a rate determined by its pitch (the distance the plate travels per revolution). A standard helix pitch of 3 inches means the shaft advances 3 inches per full rotation regardless of shaft diameter.

The torque-to-capacity correlation is the engineering backbone of helical pier design. Manufacturers provide empirical capacity tables that relate installation torque (measured in foot-pounds) to ultimate bearing capacity (measured in pounds or kips). A common correlation factor for a 1.5-inch square shaft is approximately 10 — meaning 1,000 ft-lbs of installation torque corresponds to roughly 10,000 pounds of ultimate capacity. The structural engineer specifies the required capacity, and the installer advances the pier until the hydraulic torque motor reads the corresponding torque value.

The lead section helix configuration determines how the pier interacts with the bearing stratum. A single-helix lead concentrates bearing on one plate, performing best in dense soil or on bedrock. A multi-helix lead (two or three plates spaced at intervals along the shaft) distributes load across multiple bearing planes, which is necessary in granular soils or glacial till where no single stratum provides enough resistance. The spacing between helix plates — typically three shaft diameters — prevents the stress zones of adjacent plates from overlapping.

Helical shaft extensions connect the lead section to the surface bracket. Once the lead section descends beyond the active soil zone, the crew bolts plain extension shafts (no helix plates) end-to-end until the pier reaches the target depth and torque. Extension shafts are typically 3, 5, or 7 feet long, allowing installation depth to be adjusted in the field based on actual soil conditions encountered.

What Foundation Problems Do Helical Piers Fix?

Helical piers fix settlement — the downward movement of a foundation caused by soil that can no longer support the structure's weight. Settlement shows up as stair-step cracks in block walls, diagonal cracks at window and door corners, sloping floors, and doors or windows that stick or no longer close properly. Helical piers address all of these symptoms by transferring the foundation load to bearing strata below the failing soil.

Helical piers are particularly well suited for light structure underpinning where push piers cannot generate enough driving force. Porches, stoops, garage additions, sunrooms, and chimneys often lack the structural weight needed to push a push pier to depth. Helical piers do not rely on structure weight — the hydraulic torque motor provides all the installation force. Screen porches, detached garages, and single-story additions are common helical pier candidates.

New construction piering is another primary application for helical piers. Builders install helical piers before pouring footings on sites with known unstable soil, pre-loading the piers to design capacity before the structure exists. The foundation is then poured directly on top of the pier brackets, ensuring the new home bears on stable strata from day one. For more on how soil conditions drive these decisions, see the foundation science page.

What Problems Will Helical Piers Not Solve?

Helical piers do not stop lateral wall movement — they are a vertical load transfer system, not a lateral restraint system. If your basement wall is bowing inward due to soil pressure from the outside, helical piers will not help. That problem requires wall anchors or carbon fiber straps, which counteract horizontal force. Helical piers resist only downward (and occasionally upward) loads.

Helical piers are also not the right tool for slab lifting. A sinking garage floor, sidewalk, or patio involves a concrete surface slab — not a structural footing — and the appropriate repair is polyjacking, which fills the void beneath the slab and raises it back to level. Helical piers support foundations and load-bearing footings, not surface slabs.

Obstructions in the soil column can prevent helical installation. Buried concrete, large boulders, old foundations, and dense rubble can deflect the helix plates or prevent rotation. Unlike push piers, which advance in a straight line by brute force, helical piers follow the path of least resistance when they encounter an obstruction, potentially deviating from the intended alignment. A pre-installation soil probe or geotechnical report helps identify potential obstructions before the crew mobilizes.

Where Are Helical Piers the Right Choice?

Helical piers work best in sites where the bearing stratum is accessible within the practical reach of available shaft lengths and the soil column is free of major obstructions. They perform equally well in end-bearing mode (helix plates resting on bedrock or hardpan) and friction mode (helix plates embedded in dense granular soil where cumulative skin friction provides capacity). Soil conditions determine the helix plate configuration — for detailed soil mechanics, see the foundation science page.

Helical piers are preferred over push piers when the structure is too light to provide driving reaction. Any structure weighing less than approximately 2 pounds per square foot of footing area per foot of anticipated pier depth may not generate enough reaction force for push pier installation. Porches, additions, detached structures, and single-story slab-on-grade homes often fall below that threshold.

Access-restricted sites also favor helical piers. The hydraulic torque motor mounts on compact equipment that can operate in tighter spaces than the larger rams used for push pier installation. Interior installations, sites with low overhead clearance, and properties where heavy equipment cannot reach the foundation perimeter are all helical pier candidates.

How Do Helical Piers Perform in Kansas City and Des Moines?

In Kansas City, helical piers screw through the Wymore-Ladoga clay formation — a 60-80% clay deposit with a "very high" shrink-swell rating — to reach limestone bedrock typically found at 15 to 25 feet below grade. This makes KC a favorable market for helical piers because the bearing stratum is relatively shallow and extremely competent. A single-helix lead section on bedrock provides high capacity in a short shaft length. The clay itself offers little resistance during installation, so torque readings remain low until the helix plates contact the limestone transition zone, then spike sharply — giving the installer a clear termination signal.

Des Moines presents a different geological profile that changes helical pier design. Glacial till — the unsorted mixture of clay, sand, gravel, and boulders deposited by Pleistocene-era glaciers — may extend 45 to 60 feet below grade before reaching competent bedrock. Helical piers in Des Moines often rely on friction-based capacity rather than end-bearing, using multi-helix configurations (two or three plates on the lead section) to engage enough bearing surface area within the glacial till. Shaft lengths are correspondingly longer, and installers must watch for cobbles and boulders that can deflect the advancing helix.

The contrast between these two markets illustrates why pier design must respond to local geology, not follow a one-size-fits-all formula. A KC helical pier installation might use a single-helix lead on 20 feet of shaft. The same home in Des Moines might require a triple-helix lead on 50 feet of shaft. Both achieve the same structural result — permanent load transfer to stable ground — but the engineering path differs. For specific pricing differences between regions, see the cost and economics page for current pricing.

What Does Helical Pier Installation Look Like?

A typical residential helical pier installation takes one to three days depending on the number of piers, depth to bearing, and site access. Most homes require 6 to 12 piers, though larger homes or homes with multiple settling sections may need more. The process is less disruptive than many homeowners expect — no concrete is poured, no large excavations are required, and the equipment footprint is modest.

1. Site preparation and excavation: The crew digs small access pits (roughly 3 feet wide and 3 feet deep) along the footing at engineered spacing, typically 5 to 7 feet apart. Landscaping near the foundation may need temporary removal.
2. Bracket mounting: A steel bracket is bolted or pinned to the exposed footing. The bracket type matches the footing geometry — L-brackets for spread footings, side-mount brackets for monolithic pours.

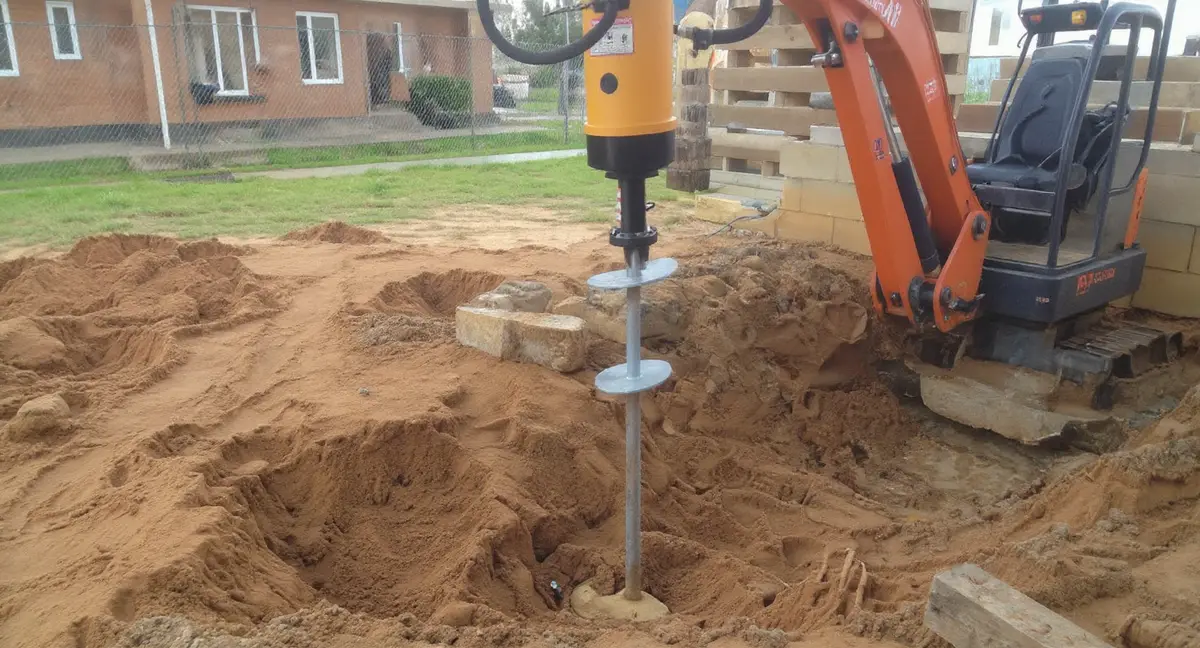

3. Lead section advancement: The lead section (shaft with helix plates) is positioned in the bracket and rotated into the soil by a hydraulic torque motor on compact equipment. The helix plates pull the shaft down as they spin — like a screw entering wood.
4. Extension and torque monitoring: As the lead section passes below the active zone, plain extension shafts are bolted on one at a time. The crew monitors installation torque continuously using a pressure gauge calibrated to the torque motor. Torque readings are logged at each extension joint.
5. Target torque verification: Installation continues until the pier reaches the torque value specified by the engineer. In KC, the shaft typically contacts limestone at 15-25 feet with a sharp torque spike. In Des Moines, the crew watches for sustained torque buildup through dense glacial till over a longer shaft run.
6. Synchronized lift: After all piers reach target torque, hydraulic jacks on every bracket lift the foundation in small increments — fractions of an inch at a time. Laser levels or string lines confirm elevation across the structure.
7. Lock-off and restoration: Brackets are permanently locked, jacks removed, pits backfilled and compacted, and disturbed landscaping restored. The homeowner receives a pier log documenting each pier's depth, torque readings, and final elevation.

Noise levels during installation are comparable to a skid steer or compact excavator operating at moderate throttle. Most of the sound comes from the hydraulic power unit, not the pier entering the soil. Interior disruption is minimal — furniture does not need to be moved unless interior piers are being installed through a basement slab.

How Do You Know the Helical Pier Work Was Done Correctly?

Torque-monitored installation is the primary quality assurance mechanism for helical piers — every pier produces a verifiable torque log that corresponds to a specific bearing capacity. Ask your contractor for the torque log for every pier installed. Each entry should show the pier number, depth at each extension, and the final installation torque in foot-pounds. The log should also reference the torque-to-capacity correlation factor (Kt) used and the resulting calculated capacity per pier.

The target torque should match or exceed the value specified in the engineering plan. If the plan calls for piers with 7,500 pounds of working capacity and the Kt factor is 10, the minimum installation torque should be 750 ft-lbs (working capacity divided by Kt). Piers that fell short of target torque but were locked off anyway are a red flag — the contractor should have added extensions to reach deeper bearing or relocated the pier.

Post-installation elevation measurements tell you whether the lift achieved its objective. The contractor should provide before-and-after elevation readings at each pier location and at key interior reference points (door frames, floor levels, countertops). Perfect level is not always achievable in an older structure without risking cosmetic damage, but the final elevations should show measurable correction toward level.

Bracket connections deserve visual inspection. The bracket should sit flush against the footing with all bolts tightened and lock nuts or set screws engaged. The pier shaft should be plumb (vertical) where it enters the bracket. Gaps between the bracket and the footing, loose hardware, or piers installed at visible angles indicate installation problems that should be addressed before the crew demobilizes.

Frequently Asked Questions About Helical Piers

How long does foundation repair last?

Helical piers are engineered as permanent repairs. The galvanized steel resists corrosion for decades, and the pier bears on soil or bedrock below the zone of seasonal movement. Most manufacturers offer warranties of 25 years or the life of the structure. Installation quality is the key variable — a pier driven to verified torque specifications and properly bracketed will outlast the building it supports.

Does Kansas City have clay soil?

Kansas City sits on the Wymore-Ladoga clay formation, which contains 60-80% clay minerals. The USDA rates this formation as "very high" for shrink-swell potential. Helical piers bypass this clay entirely by screwing through it to limestone bedrock, typically found at 15 to 25 feet in most KC neighborhoods. For a deeper discussion of clay soil behavior, see the foundation science page.

What time of year is worst for foundation problems in Kansas City?

Late summer through early fall produces the most visible foundation distress in KC. Prolonged heat and drought shrink the Wymore-Ladoga clay, creating voids beneath footings. When fall rains arrive, rapid re-expansion generates uneven pressure. Each annual cycle adds to cumulative displacement, which is why foundation problems tend to worsen year over year rather than stabilize on their own.

Does homeowner's insurance cover foundation repair?

Standard homeowner's policies generally exclude foundation damage caused by soil movement, settling, or gradual deterioration. Coverage may apply if a sudden event — such as a plumbing failure that erodes soil — caused the damage. Check your policy's exclusions section or contact your insurer. For repair cost context, see the cost and economics page for current pricing.

Can I sell my house with foundation problems?

Yes, though foundation issues must be disclosed in Kansas, Missouri, and Iowa. Unrepaired problems reduce sale price and narrow your buyer pool. A completed helical pier repair with transferable warranty and documented torque logs can reassure buyers — the repaired sections now bear on stable strata. Many homeowners recover repair costs through higher sale price and faster closing timelines.
