Helical Piers vs. Push Piers: Choosing the Right System

Helical piers and push piers both stabilize settling foundations by transferring structural loads to stable soil or bedrock below the active zone — but they reach that bearing strata through fundamentally different mechanisms. Push piers are hydraulically driven downward using the weight of the existing structure as resistance. Helical piers are rotated into the ground like a screw, with torque-monitored equipment controlling the installation. The right pier selection criteria depend on your structure's weight, the depth and type of bearing strata below your home, and the soil conditions the pier must pass through to get there.

Choosing the wrong pier system does not always mean the repair fails — but it can mean a more expensive installation, slower work, or reduced long-term performance. A push pier installed on a lightweight structure may not generate enough resistance to reach bearing depth. A helical pier used where bedrock sits at 15 feet may be overkill when a simpler push pier would reach the same rock. Understanding the engineering trade-offs between these two systems helps homeowners evaluate contractor recommendations and ask the right questions before signing a contract.

What Are the Key Differences Between Helical and Push Piers?

The core difference is how each pier reaches bearing strata: push piers use resistance-based driving, while helical piers use torque-based rotation. A push pier consists of steel tube sections that a hydraulic ram pushes into the ground one segment at a time. The structure's dead weight provides the counter-force — the ram pushes against the footing, and the pier goes down. A helical pier consists of a steel shaft with welded helix plates that rotate into the soil like a large screw. A torque motor drives the rotation, and the installer monitors torque readings to verify bearing capacity.

Push piers require a minimum structure weight to function — typically 3,500 to 5,000 pounds of dead load per pier location. Without sufficient counter-force, the hydraulic ram lifts the structure rather than driving the pier. This structure weight requirement makes push piers ideal for heavy masonry homes, multi-story construction, and homes with full basements where the footing carries significant load. Single-story frame homes, porches, stoops, and detached garages often lack the weight needed for push pier installation.

Helical piers do not depend on structure weight because the torque motor provides its own driving force. This makes helical piers the only option for new construction piering (where no structure exists yet to provide resistance), lightweight structures, and situations where the footing load is too low for push pier installation. Bearing capacity verification on helical piers is measured by correlating installation torque to load capacity using established engineering formulas.

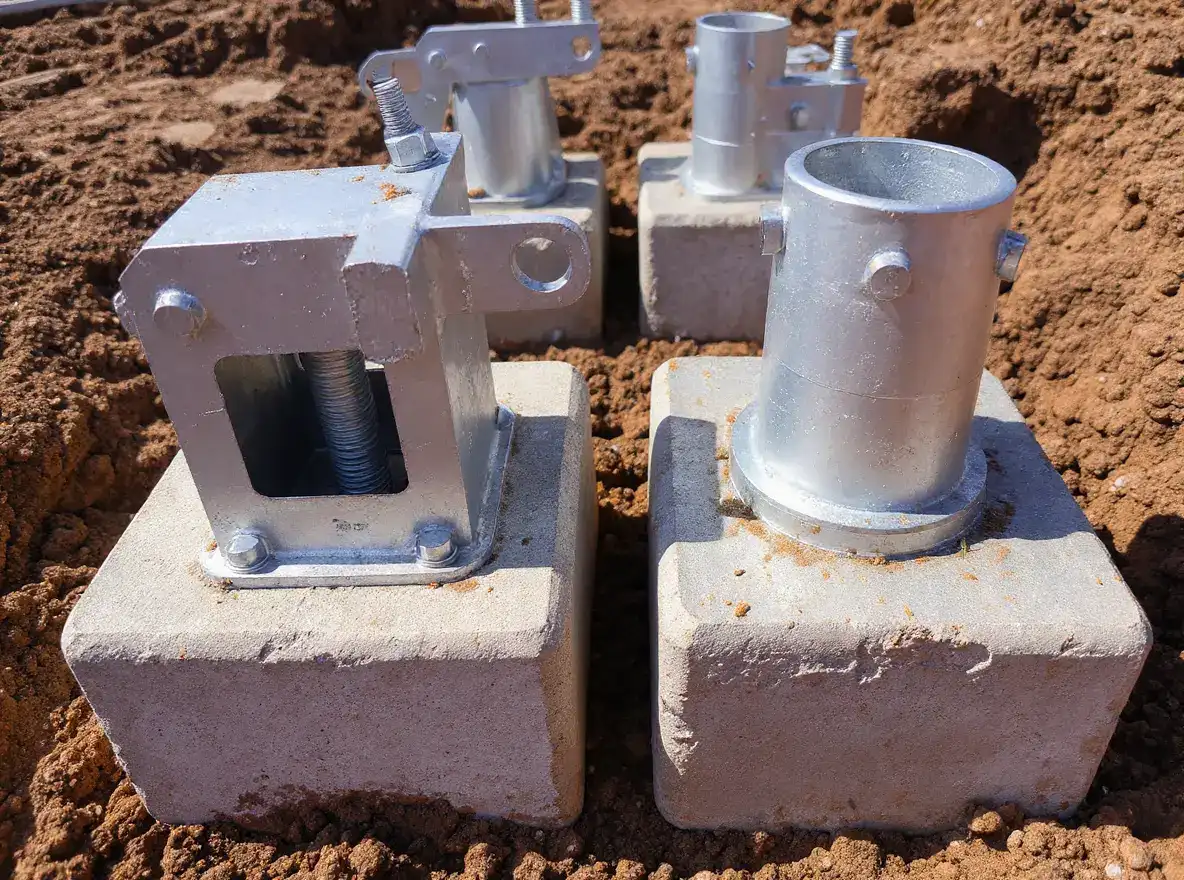

Load path engineering differs between the two systems at the bracket connection. Push pier brackets wrap around the bottom edge of the footing. Helical pier brackets bolt to the face or top of the footing. Both create a rigid connection between the pier shaft and the foundation, but the bracket geometry and fastening methods differ. A contractor experienced with one system but not the other may default to what they know rather than what fits the specific situation.

When Should You Choose Helical Piers?

Helical piers are the better choice when the structure is too light for push pier installation, when bedrock is absent or extremely deep, or when the project is new construction. Homes under 1,200 square feet, single-story wood-frame construction, manufactured homes on permanent foundations, and front porches or stoops rarely generate enough dead load to drive push piers effectively. Helical piers bypass this limitation entirely.

Deep bearing strata — 40 feet or more — often favors helical piers because multi-helix configurations can develop friction bearing capacity in dense soil layers without needing to reach bedrock. Each helix plate on the shaft acts as an individual bearing surface. A pier with three helix plates in dense glacial till generates load capacity across three separate soil contact zones, distributing the load vertically through the soil column. This friction-bearing approach is particularly relevant in Des Moines, where glacial till extends 45 to 60 feet before bedrock.

New construction pier applications — such as underpinning a new addition on fill soil or pre-piering a building pad before the slab is poured — require helical piers by default. No structure exists yet to provide driving resistance for push piers. The helical pier is installed to design depth, the bracket is set at grade, and the new foundation is built on top of the pier system. This is standard practice for new construction on sites with poor native soil or documented fill.

When Should You Choose Push Piers?

Push piers are typically preferred when the structure has adequate weight, bedrock or dense bearing strata exists at a reachable depth, and the project is an existing home repair. The resistance-based installation method has an inherent advantage: the pier is literally tested against the structure's actual weight during installation. If the ram can push the pier to depth using the building as counterweight, the pier can support that building. This real-time load testing is built into the installation process.

Homes with full basements, two-story construction, brick or stone veneer, and concrete block walls are ideal push pier candidates. These structures provide ample dead load — often 8,000 to 15,000 pounds per linear foot of footing — giving the hydraulic ram far more resistance than it needs. The installation is straightforward, the bearing verification is direct, and the per-pier cost is typically lower than helical piers in the same soil conditions.

End-bearing on bedrock produces the highest long-term reliability for any pier system, and push piers excel at reaching bedrock when it sits within 25 to 30 feet of the surface. The pier drives until it physically contacts rock, and the ram cannot push it further. This refusal point is unambiguous — the pier has arrived at a surface that will not compress, erode, or shift. When bedrock is present at accessible depth, push piers deliver the most direct and verifiable load path.

How Do Soil Conditions Affect Pier Selection?

The depth, density, and composition of the soil profile beneath your home is the single most important factor in pier system comparison and selection. A push pier driven through soft clay to limestone at 20 feet performs differently than a helical pier screwed through dense glacial till to 55 feet. Both stabilize the foundation, but the soil strata matching — choosing the pier type that works best with the soil it must penetrate and ultimately bear on — determines installation efficiency, cost, and long-term performance.

Cobbles, boulders, and dense gravel layers can obstruct helical pier installation because the helix plates cannot cut through hard inclusions. The torque motor stalls or the helix plate deforms when it encounters rock fragments larger than the plate spacing. Push piers handle these obstructions better because the narrow tube tip can deflect off or push past individual cobbles. In areas with rocky fill or glacial deposits containing scattered boulders, push piers may advance more reliably.

Soft, saturated soils with low shear strength present a different challenge where helical piers have an advantage. Push piers driven through very soft soil may lack enough side friction to remain stable during the driving process — the pier can drift off-vertical in low-resistance conditions. Helical piers maintain alignment better in soft soil because the helix plates engage the soil laterally as they rotate, pulling the pier downward along a controlled path.

How Does the Pier Choice Differ Between Kansas City and Des Moines?

Kansas City and Des Moines have fundamentally different subsurface profiles, and those differences directly influence which pier system performs best in each market. The comparison table below summarizes the key variables that drive pier selection criteria in each metro area.

Kansas City's combination of heavy mid-century homes and shallow limestone bedrock creates ideal conditions for push pier installation. A typical 1950s brick ranch in Raytown or Independence weighs enough to drive push piers through 15 to 20 feet of expansive clay to clear limestone refusal. The installation is fast, the bearing verification is definitive (the pier hits rock and stops), and the load path from footing to bedrock is direct.

Des Moines' deeper glacial till and lighter residential construction shifts the balance toward helical piers in many applications. A 1990s frame home in West Des Moines or Ankeny may not weigh enough for push pier driving, and bedrock may sit at 55 feet — too deep for cost-effective push pier installation even if the weight were sufficient. Multi-helix helical piers screwed to 30 or 40 feet in dense till can develop adequate bearing capacity through friction without reaching bedrock at all.

Neither pier system is universally better — the right choice is always site-specific. A heavy 1920s brick home in Des Moines' Drake neighborhood may be a better push pier candidate than a lightweight 2005 frame home in Kansas City's Shoal Creek subdivision. Pier selection criteria should be driven by the soil boring data and structural loads at the specific property, not by regional generalizations. For cost comparisons between pier types, visit the cost and economics page.

How Can You Tell If Your Contractor Chose the Right Pier System?

A contractor who recommends the correct pier system can explain why that system fits your specific soil conditions, structural loads, and bearing strata — not just which brand they prefer to install. Ask directly: why this pier type instead of the alternative? The answer should reference your home's weight, the expected bearing depth, and the soil type the pier will pass through. If the answer is about product brand loyalty or corporate partnership rather than engineering rationale, that is a signal to get a second opinion.

Bearing capacity verification should be documented for every pier, regardless of type. Push pier installations should record hydraulic driving pressure at final depth for each pier — this pressure confirms the pier reached adequate resistance. Helical pier installations should record torque readings throughout the drive, with final torque values correlated to bearing capacity using the manufacturer's torque-to-capacity ratio. If your contractor cannot provide these records, there is no verification that the piers reached design capacity.

Red flags in pier system selection include recommending push piers on a lightweight structure, recommending helical piers in soil with documented cobble or boulder layers, or recommending any pier system without discussing the expected bearing depth. Each of these scenarios suggests the contractor is defaulting to a familiar product rather than matching the pier to the conditions. A second opinion from an independent structural engineer — one who does not sell or install pier systems — provides an unbiased assessment of which system fits your situation.

Warranty terms should reflect the pier system's engineering design, not just the hardware. A pier warranty that covers the steel components but not the structural outcome (the foundation stays stable) is an equipment warranty, not a performance warranty. Ask whether the warranty covers re-leveling if the foundation moves after repair, and whether it transfers to a future buyer. These terms indicate the contractor's confidence in their pier selection and installation quality.

Frequently Asked Questions About Helical and Push Piers

Is foundation repair worth the cost?

Foundation repair is almost always worth the cost when the alternative is progressive structural damage. Settlement does not reverse itself — it worsens with each seasonal soil cycle. A home with an unrepaired foundation problem loses 10-15% of its market value and faces increasing secondary damage to framing, drywall, plumbing, and finishes. The cost of repair increases the longer it is deferred because the scope of damage expands. Early repair addresses a smaller problem at lower cost with less disruption. Visit the cost and economics page for detailed pricing data and financing options.

What type of soil causes foundation problems in Des Moines?

Des Moines sits on glacial till deposited during the Wisconsin glaciation — a dense mixture of clay, silt, sand, gravel, and boulders compressed by ice sheets over 12,000 years ago. The till layer can extend 45 to 60 feet deep before reaching bedrock. The clay fraction within this till is susceptible to moisture-driven volume changes, though less dramatically than Kansas City's pure expansive clay. The primary challenge in Des Moines is the depth to stable bearing strata, which increases the length of pier systems and affects which pier type performs best.

Why is the frost depth deeper in Des Moines than Kansas City?

Des Moines sits approximately 200 miles further north than Kansas City, placing it in USDA hardiness zone 5a compared to Kansas City's zone 6a. Average January temperatures in Des Moines are 5-8 degrees Fahrenheit colder. Frost depth is determined by the duration and intensity of below-freezing temperatures — the longer the soil surface remains below 32 degrees, the deeper the frost line penetrates. Des Moines reaches a frost depth of 42 inches compared to Kansas City's 36 inches. Foundation footings in both cities must sit below these depths, but the deeper frost line in Des Moines means more concrete and deeper excavation for new construction.

How do I know if a crack in my foundation is serious?

Width, direction, and change over time are the three most reliable indicators of severity. Vertical cracks under 1/8 inch are usually non-structural curing shrinkage. Horizontal cracks indicate lateral earth pressure pushing the wall inward — always structural. Diagonal cracks indicate differential settlement — almost always structural. Stair-step cracks through block mortar joints indicate settlement in masonry walls. Any crack that is widening over weeks or months signals active movement. Place a dated pencil mark across both ends of the crack and check it quarterly. If the marks shift apart, the crack is active and requires professional evaluation.

Does homeowner's insurance cover foundation repair?

Standard homeowner's insurance policies typically exclude foundation repair caused by settlement, soil movement, or normal wear. Insurance covers sudden and accidental events — a burst pipe that erodes soil and causes settlement may be covered, but gradual settlement from expansive clay or poor drainage is excluded. Some policies cover structural damage from covered perils like plumbing failure if you can demonstrate the causal connection. Review your policy's exclusions section or consult your agent for your specific coverage. Visit the cost and economics page for information on financing options available for foundation repair.
