Push Piers: Hydraulic Foundation Underpinning

A push pier is a series of steel tube segments hydraulically driven into the ground using the weight of your house as counterforce, until the tubes reach bedrock or soil dense enough to permanently support the foundation. The system works like a column of stacked steel pipes — each segment is pushed beneath the previous one until the bottom of the column hits something that will not move. A steel bracket bolted to your footing connects the pier column to your foundation, transferring the home's weight from failing surface soil to the stable bearing stratum below.

Push piers are the most widely installed residential foundation repair method in the Kansas City metro. The reason is geological: KC's limestone bedrock sits at 15 to 25 feet below grade — shallow enough for efficient pier driving — and the mid-century homes that make up 30.72% of the metro's housing stock have enough structural mass to provide the reaction force that push pier installation requires. The load transfer mechanism is permanent: once locked, the pier bears on rock that has supported millions of tons of overburden for 300 million years.

How Does a Push Pier System Work?

Push piers work by hydraulic resistance driving — a ram pushes steel tubes into the earth while the structure's own weight prevents the ram from pushing the house upward instead. The physics are straightforward: Newton's third law. The hydraulic cylinder exerts equal force in both directions. Downward force drives the tube into the ground. Upward force pushes against the bracket, which pushes against the footing, which pushes against the house. As long as the house weighs more than the soil resistance at the pier tip, the tube advances downward.

Steel tube segmentation allows the pier to reach any practical depth. Each tube segment is typically 3 to 4 feet long and 2.875 or 3.5 inches in outer diameter, made from high-strength structural steel. After one segment is driven flush with the bracket, the ram retracts, a new segment is placed, and driving resumes. The tubes nest or interlock end-to-end, creating a continuous steel column from the bracket to the bearing stratum. Ten segments at 3 feet each would produce a 30-foot pier.

End-bearing capacity is what gives push piers their holding power. Unlike helical piers, which can derive capacity from friction along the shaft, push piers function almost entirely as end-bearing members. The flat-cut bottom of the lowest tube segment sits on the bearing surface — rock or hardpan — and the full structural load transmits straight down through the column to that surface. The surrounding soil contributes minimal support; all capacity comes from the pier tip contacting immovable ground.

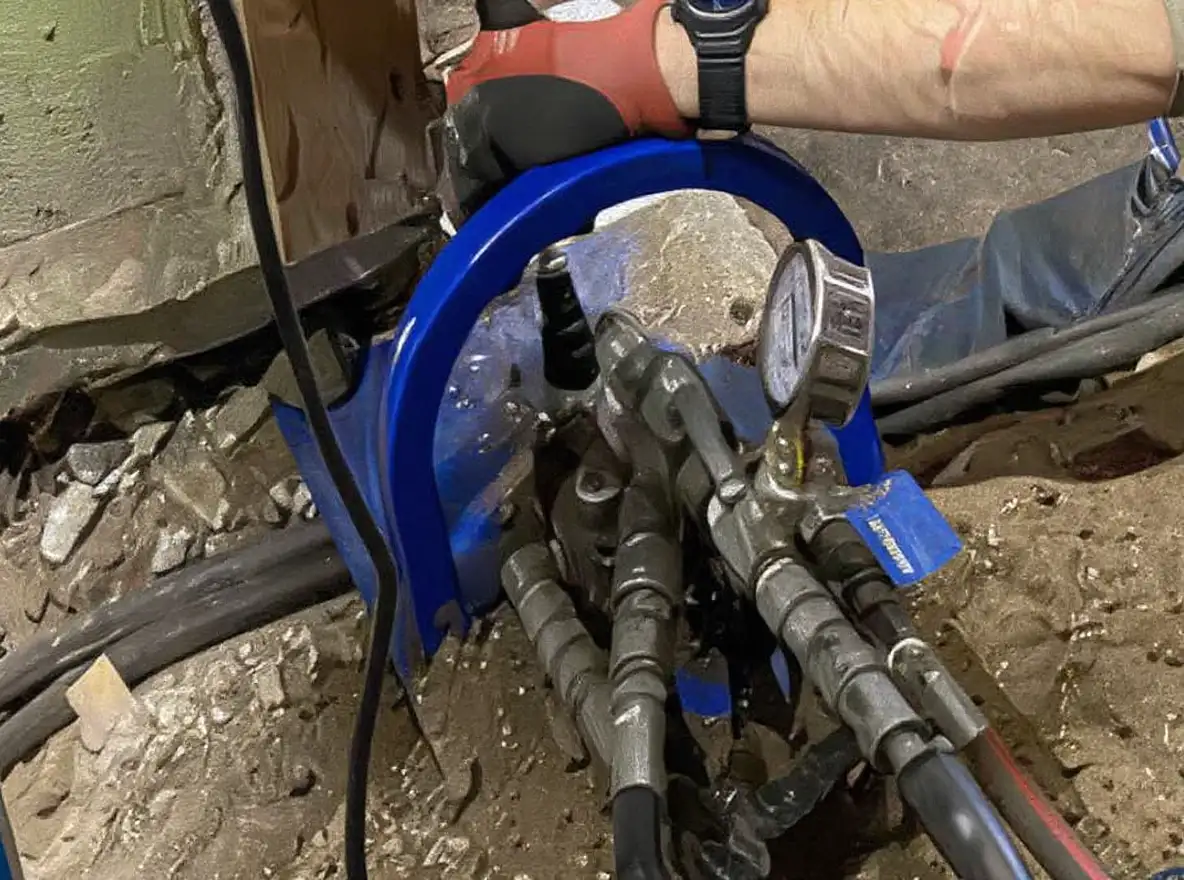

The bracket-to-footing connection is the critical link between pier and structure. A forged or fabricated steel bracket clamps to the underside of the footing and provides the guide sleeve through which tubes are driven. After installation, the bracket becomes the permanent load path: structure weight flows from footing to bracket to pier column to bedrock. Bracket design varies by manufacturer, but all share the same function — rigid connection with minimal deflection under load.

What Foundation Problems Do Push Piers Solve?

Push piers solve settlement — the condition where soil beneath a foundation compresses, erodes, or consolidates, causing sections of the home to sink. Settlement produces stair-step cracks in masonry walls, diagonal cracks radiating from window corners, floors that slope toward the settling section, and doors or windows that bind in their frames. Push piers halt settlement by removing the foundation's dependence on the surface soil that is failing.

Differential settlement — where one part of the foundation sinks more than another — is the most damaging pattern push piers address. Uniform settlement (the entire house sinking evenly) rarely causes structural distress because the geometry of the structure remains intact. Differential settlement introduces rotation, shear, and tension forces that concrete and masonry were not designed to resist. Push piers installed at the settling sections re-level the foundation by lifting those sections back toward their original elevation.

Push piers can also stabilize foundations threatened by active erosion. Underground water flow, broken drain tiles, and failed downspout connections can wash bearing soil from beneath footings over time. The erosion void grows until the footing no longer has enough support and drops into the cavity. Push piers bypass the erosion zone entirely, bearing on strata below the water's reach.

What Limitations Should You Know About?

Push piers require the structure to weigh enough to drive the tubes — lightweight buildings cannot provide sufficient reaction force. The minimum structure weight needed depends on soil resistance and pier depth, but as a general guideline, single-story slab-on-grade homes, detached porches, stoops, and small additions may not generate enough downward force. When the hydraulic ram encounters more soil resistance than the structure's weight above the bracket, the ram lifts the house instead of driving the tube. In those cases, helical piers are the appropriate alternative.

Push piers do not address lateral wall movement. Bowing, tilting, or sliding basement walls are caused by horizontal soil pressure from outside the wall — a completely different failure mode from settlement. Push piers resist vertical loads only. Lateral wall problems require wall anchors or carbon fiber straps. If a home has both settlement and wall bowing, it may need push piers for settlement and a separate wall stabilization system for lateral movement.

Push piers also do not lift settled surface slabs (driveways, garage floors, sidewalks). Those slabs are not load-bearing footings — they sit on fill soil and have no structural footing to bracket to. Polyjacking is the correct method for raising settled surface concrete.

Cobbles and boulders in the soil column can impede driving. While push piers advance by brute force and can punch through many obstructions, a large boulder directly in the driving path can deflect the tube or create a false refusal — the pier stops advancing but has not reached competent bearing. Experienced installers recognize false refusal by comparing the driving pressure and depth against the geotechnical report's predicted bearing depth. Des Moines glacial till, which contains scattered cobbles and boulders deposited by glaciers, presents this challenge more frequently than Kansas City's relatively uniform clay profile.

Where Is Push Pier Underpinning Most Appropriate?

Push piers are the first choice for existing residential structures with adequate weight on sites where bedrock or dense bearing strata exist within reach of the pier column. The ideal push pier candidate is a home with a full basement, masonry or poured concrete walls, and a bearing stratum within 15 to 40 feet. That description fits the majority of homes in Kansas City's established neighborhoods — midtown, south KC, the Northland, and inner-ring suburbs in both Kansas and Missouri. For more on how soil strata affect pier selection, see the foundation science page.

Multi-story homes are especially well suited for push piers because they provide abundant reaction force. A two-story home with a full basement has three levels of structure bearing on its footings. That weight drives piers efficiently and allows larger-diameter tubes that carry higher capacity per pier. The result is fewer piers needed, wider spacing, and faster installation.

Homes on sites where soil borings confirm a clear bearing stratum are the strongest push pier candidates. When a geotechnical report shows limestone at 18 feet with no intervening boulders or voids, the installer knows exactly how deep each pier will go and can estimate the project scope with high accuracy. Uncertain soil profiles — where bearing depth varies widely across the site — introduce more field adjustment and potential for surprises during installation.

How Do Push Piers Perform in Kansas City and Des Moines?

Kansas City is one of the strongest regional markets for push pier installation in the Midwest, and the geology explains why. Limestone bedrock sits at 15 to 25 feet below grade across most of the metro — close enough for efficient driving, deep enough to be below the active clay zone. The Wymore-Ladoga clay above the limestone offers minimal driving resistance, so piers advance through it quickly. When the tube tip contacts limestone, driving pressure spikes dramatically, giving the installer an unmistakable bedrock termination signal.

KC homes built in the 1940s through 1960s — 30.72% of the metro's housing stock — are the most common push pier candidates. These homes share a construction profile: poured concrete or concrete block basement walls on shallow spread footings bearing directly on native clay. After 60 to 80 years of cumulative shrink-swell cycling, the clay beneath these footings has consolidated and shifted enough to produce visible differential settlement. The homes are heavy enough (full basements, often two stories, masonry construction) to provide strong driving reaction.

Des Moines glacial till requires a different approach to push pier installation. Bearing strata may lie 45 to 60 feet below grade, which means more tube segments, longer installation time, and higher material cost per pier. The glacial till itself can produce variable resistance during driving — the pier may pass through soft clay layers, encounter dense gravel lenses, and hit scattered cobbles before finally reaching consistent refusal. Installers in the Des Moines metro must be prepared for longer pier runs and must distinguish true bedrock termination from false refusal on buried boulders.

For current pricing differences between KC and Des Moines push pier projects, see the cost and economics page for current pricing. Material costs per pier are directly proportional to depth, making Des Moines installations more expensive per pier than comparable KC projects when bedrock depths differ significantly.

What Does Push Pier Installation Look Like?

Most residential push pier installations are completed in one to three days, depending on the number of piers and depth to bedrock. A typical KC project — eight to twelve piers driven 15 to 25 feet to limestone — can often be finished in a single long day or two standard days. Des Moines projects requiring 40+ feet of depth per pier may extend to three days.

1. Excavation to footing: The crew digs access pits along the foundation wall at each pier location, exposing the bottom of the footing. Pits are roughly 3 feet wide and deep enough to clear the footing base. Landscaping, pavers, or concrete within the excavation zone are temporarily removed.
2. Bracket attachment: A heavy steel bracket is bolted or pinned to the footing. The bracket includes a guide sleeve that aligns the tube segments during driving and becomes the permanent load transfer connection after the lift.

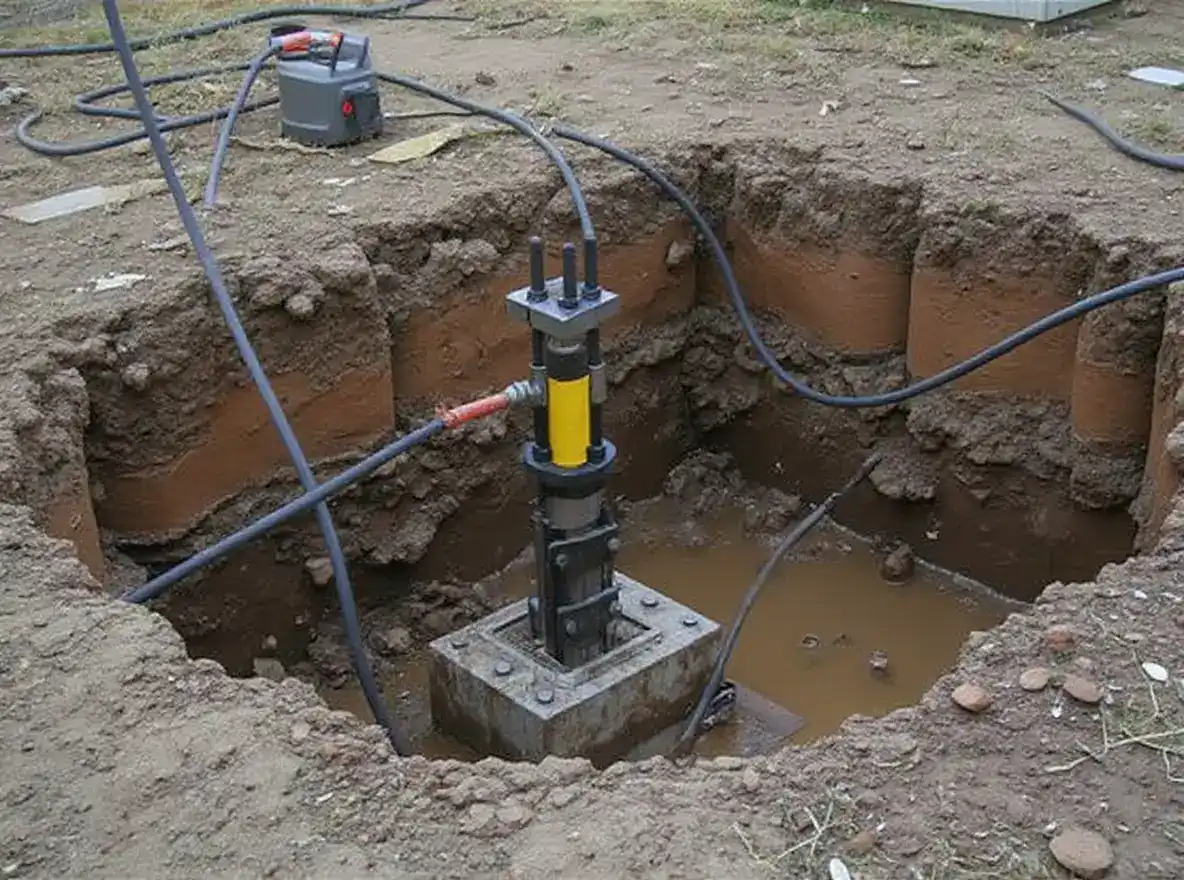

3. Hydraulic resistance driving: A portable hydraulic ram is set between the bracket and the first tube segment. The ram pushes the tube down using the home's weight as counterforce. Structure weight counterforce is what distinguishes push piers from every other piering method — the house itself is the installation equipment.
4. Steel tube segmentation: Each time a tube is driven flush with the bracket, the ram retracts, a new segment is placed in the guide sleeve, and driving continues. Segments interlock or nest to maintain column alignment. The installer records driving pressure at each segment change.
5. Pier depth verification: Driving continues until the pier reaches refusal — the point where the soil or bedrock at the tip resists further advancement at pressures exceeding the structure's weight. The final driving pressure, compared to the engineer's required capacity, confirms the pier has reached adequate bearing. A minimum safety factor of 1.5x working load is standard.
6. Synchronized structural lift: Hydraulic jacks on all pier brackets are pressurized simultaneously to raise the foundation. Lifting proceeds in controlled increments while laser levels track elevation across the structure. Over-lifting is avoided to prevent stress cracking in the structure above.
7. Lock-off, backfill, and documentation: Steel shims and set screws lock each bracket at its final elevation. The load transfers permanently from the jacks to the pier columns. Soil is backfilled and compacted, surfaces are restored, and the homeowner receives a complete installation report with per-pier depth, driving pressures, and final elevation data.

The equipment footprint is smaller than most homeowners expect. The hydraulic power unit (a self-contained pump on wheels or skids) sits in the yard or driveway, connected to the rams by hoses. No concrete trucks, no pile drivers, no cranes. The loudest sounds are the hydraulic pump cycling and occasional clanking of tube segments. Most neighbors would not notice the work if they were not looking.

How Do You Know the Push Pier Work Was Done Right?

Every push pier produces a driving log — a record of hydraulic pressure at each tube segment — that serves as built-in quality verification. Request this log from your contractor. Each pier entry should document: pier number, location along the foundation, number of tube segments driven, driving pressure at each segment (or at minimum the final segment), and the calculated bearing capacity derived from that pressure.

Final driving pressure should meet or exceed the engineer's specified load capacity with an appropriate safety factor. If the design calls for 5,000 pounds of working load per pier at a 1.5x factor of safety, the final driving pressure should correspond to at least 7,500 pounds of ultimate resistance. Piers that stopped short of the specified pressure but were locked off anyway indicate either a false refusal (which the installer should have recognized and resolved) or insufficient reaction weight (which should have been identified during project planning).

Before-and-after elevation surveys quantify the result of the lift. A properly documented project includes elevation readings at each pier location and at interior reference points (floor levels measured with a manometer or laser, door frame gaps measured with calipers) taken before installation begins and again after the lift is complete. The difference tells you exactly how much correction was achieved.

Visual indicators of proper installation include brackets sitting flush and tight against the footing, pier columns entering the ground vertically, clean and undamaged tube segments, and backfill compacted in lifts rather than dumped loosely. Sloppy backfill around pier locations can lead to settlement of the surface soil and drainage problems, even though the pier itself is performing correctly. A conscientious crew compacts backfill in 6-inch lifts with a hand tamper.

Frequently Asked Questions About Push Piers

What is the best foundation repair method?

No single method is universally best — the right repair depends on the failure mode. Push piers are the most common choice for residential settlement where bedrock is accessible and the structure provides adequate weight for hydraulic driving. Helical piers serve lighter structures. Wall anchors and carbon fiber straps address lateral wall movement. The diagnostic sequence is: identify the symptom, determine the failure mode, then match the repair method to the failure.

What is the shrink-swell cycle and how does it damage foundations?

Clay-rich soils expand when wet and contract when dry. Kansas City's Wymore-Ladoga clay (60-80% clay content) can change volume by 10% or more between seasons. When clay shrinks, voids form beneath footings. When it swells, pressure is applied unevenly. Each cycle ratchets the foundation slightly further out of position, and the displacement accumulates over years. Push piers bypass the active zone entirely by bearing on bedrock below it. For detailed soil mechanics, see the foundation science page.

Are older Kansas City homes more at risk for foundation problems?

Statistically, yes. Homes built between the 1940s and 1960s account for 30.72% of KC's housing stock and represent the largest share of push pier installations. These homes have shallow footings on native clay, no modern soil treatment, and 60-80 years of accumulated shrink-swell damage. Their masonry construction and full basements, however, make them ideal push pier candidates due to sufficient structural weight for hydraulic driving.

How much does foundation repair cost in Kansas City?

Push pier costs depend on the number of piers, depth to bearing, site access, and project scope. Rather than listing figures that change with market conditions, we maintain current pricing data on the cost and economics page for current pricing. That page covers per-pier ranges, typical project totals, cost factors, insurance considerations, and financing options for both Kansas City and Des Moines.

Do foundation problems get worse over time?

Yes — foundation settlement is progressive. The soil conditions driving the movement do not self-correct. Clay shrink-swell cycles add incremental displacement each year. Erosion beneath footings continues with every storm. Cracks widen, floors slope further, and structural damage compounds as gravity accelerates the movement of displaced components. Early intervention with push piers costs less and achieves better correction than waiting for damage to accumulate.
