Slab Piers: Stabilizing Sinking Concrete Slabs

Slab piers are steel pier systems installed through the interior concrete slab to stabilize sinking floors and interior bearing walls from below. When a slab-on-grade foundation or basement floor settles, the problem is not with the concrete itself — it is with the soil beneath it. Slab piers bypass that failing soil entirely by driving steel sections downward through the slab until they reach stable bearing strata, then transferring the load of the slab and the structure it supports onto those piers.

Interior slab stabilization is a distinct repair from perimeter piering, even though both use similar steel pier components. Perimeter push piers or helical piers stabilize the foundation walls and the footings that support them. Slab piers address the interior floor — the concrete slab that spans between those perimeter walls. A home can have stable perimeter walls and a sinking interior slab, because the slab sits on different soil than the footings. The two systems solve different structural problems and are often used together when both interior and perimeter settlement are present.

How Do Slab Piers Stabilize a Sinking Floor?

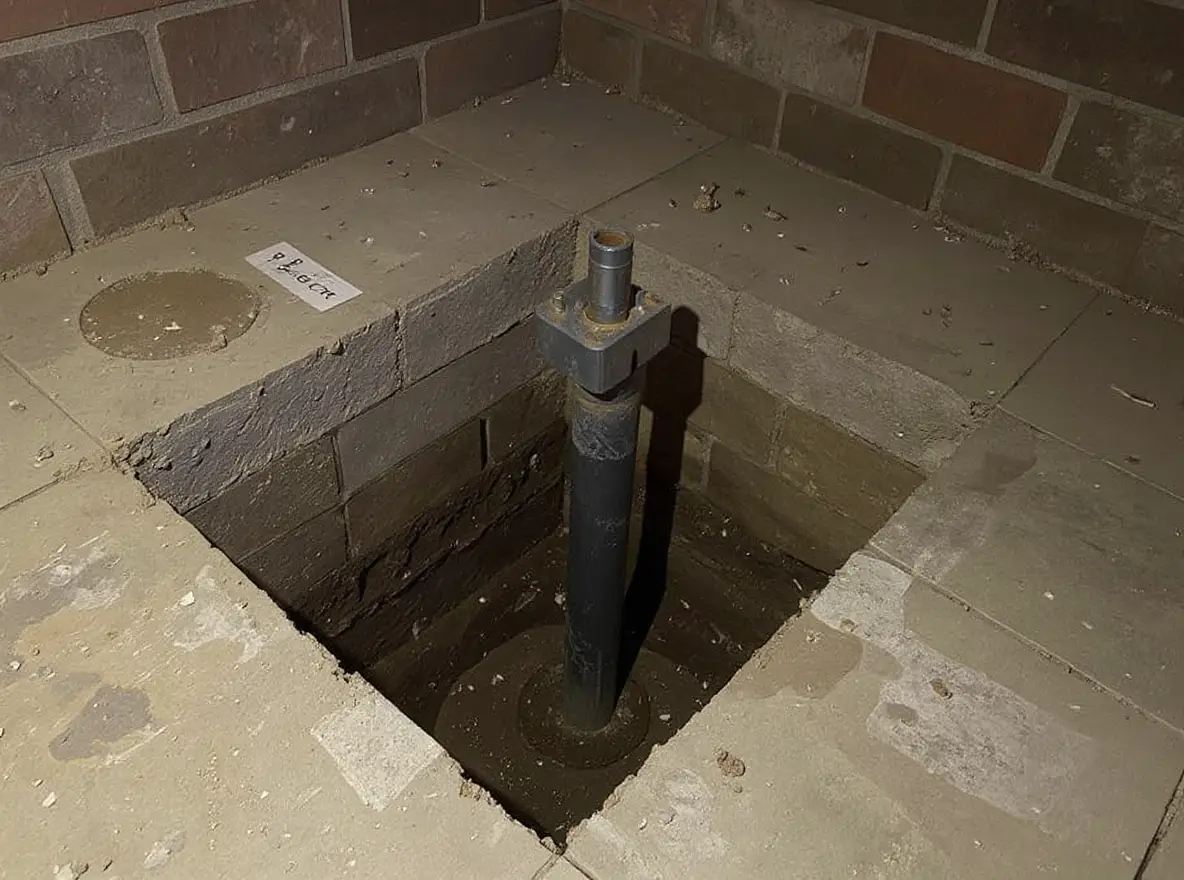

A slab pier creates a structural column beneath the concrete slab that connects the floor surface to soil or rock that can permanently support it. The pier shaft passes through the slab via a cored access hole, and a steel bracket grips the underside of the slab to distribute the load across a wider contact area. Once the pier reaches bearing strata — bedrock, dense glacial till, or other stable soil — hydraulic jacks lift the slab back toward its original elevation.

The slab bracket assembly is what distinguishes slab piers from standard push piers or helical piers used on perimeter footings. Perimeter piers attach to the footing with a bracket that wraps around the footing edge. Slab pier brackets grip the flat underside of the slab from below, which requires a different geometry and load-transfer mechanism. The bracket design varies by manufacturer, but all function on the same principle: creating a rigid mechanical connection between the slab and the pier shaft.

Sub-slab void filling often accompanies slab pier installation. When soil beneath a slab compresses or erodes, it creates a gap — a sub-slab void — between the bottom of the concrete and the soil surface below. Even after piers lift the slab to grade, that void remains unless it is filled. Polyurethane foam or flowable fill grout can be injected to support the slab between pier locations, preventing the unsupported spans from cracking under their own weight.

What Problems Can Slab Piers Fix?

Slab piers address settlement of interior concrete slabs — specifically, situations where the floor is sinking because the soil beneath it has lost bearing capacity. This includes slab-on-grade foundations where the main living floor is a concrete slab poured directly on prepared soil, and basement floors where the concrete slab sits on subgrade material below the foundation walls. Both fail the same way: the soil compresses, erodes, or dries out, and the slab drops into the resulting void.

Interior bearing wall support is one of the most structurally critical applications for slab piers. Many homes have load-bearing walls that sit on the interior slab rather than on their own footings. When the slab beneath those walls settles, the walls drop with it — and every floor, ceiling, and roof member they support drops too. The result is sagging upper floors, cracked drywall, sticking doors, and in severe cases, visible deflection in the roofline.

Basement floor settlement creates both structural and functional problems. A settling basement floor can pull away from the perimeter walls, creating gaps where water enters. Utility connections — furnace flues, plumbing drains, water heater lines — shift as the floor moves. Finished basement spaces become unlevel and develop cracks in tile, laminate, or drywall. Slab piers restore the floor to grade and stop the movement that created these secondary issues.

What Problems Are Slab Piers Not Designed to Fix?

Slab piers do not fix frost heave, slab curling, or surface-level slab damage — these are fundamentally different failure modes that require different repairs. Frost heave pushes slabs upward rather than letting them settle downward. Slab curling is a moisture differential issue within the concrete itself, where the top surface dries faster than the bottom and the edges curl upward. Neither condition involves the bearing failure of subgrade soil that slab piers are designed to correct.

Slab piers are not a replacement for polyjacking on non-structural slabs like garage floors, sidewalks, or driveways. These flatwork slabs do not carry structural loads and do not need the permanent load transfer that piers provide. Polyjacking fills the void beneath a settled flatwork slab with expanding polyurethane foam and lifts it back to level — a faster, less invasive, and less expensive approach. Slab piers are reserved for structural slabs that support the weight of the building above.

Perimeter wall settlement is not a slab pier problem. If the foundation walls themselves are sinking — producing stair-step cracks, diagonal cracks, or wall rotation — the repair involves push piers or helical piers attached to the perimeter footings. Slab piers stabilize the interior floor, not the walls that frame it. The two systems are complementary but address different structural elements.

When Are Slab Piers the Right Choice?

Slab piers are appropriate when the interior slab is settling due to subgrade soil failure and the slab supports structural loads — bearing walls, columns, or heavy equipment. The key diagnostic indicators are interior floors sloping toward the center of the home, cracks in the interior slab that widen over time, gaps between the slab edge and perimeter walls, and doors on interior walls that have started sticking or swinging open on their own.

A structural engineer or qualified foundation contractor determines slab pier placement based on the load path of the structure above. Piers are positioned beneath bearing walls and concentrated load points — column footings, stairwell landings, heavy mechanical equipment locations — rather than in a uniform grid across the entire slab. The goal is to support the structural loads, not to lift every square foot of concrete.

Slab-on-grade piering is most common in homes built without basements, where the main living floor is the concrete slab itself. In these homes, there is no perimeter footing below the slab to carry interior loads. The slab is both the floor and the foundation for interior walls, making it structurally critical. Slab-on-grade foundations are particularly common in ranch-style homes, split-levels, and post-1970 construction across the Midwest.

How Do Kansas City and Des Moines Conditions Affect Slab Pier Projects?

Kansas City homes with slab-on-grade foundations — approximately 28.45% of the metro's housing stock, concentrated in 1970s and later construction — are primary candidates for slab pier work when the main floor settles. These homes sit on the Wymore-Ladoga clay formation, where the seasonal shrink-swell cycle pulls support away from the slab interior. The slab edges, anchored to the perimeter foundation, often hold position while the center of the slab drops — a pattern called center settlement or dish settlement.

In Kansas City, slab piers typically reach limestone bedrock at 15 to 25 feet below grade, providing end-bearing support on rock that will not compress or shift. This relatively shallow bearing depth keeps pier installation costs lower and installation times shorter compared to markets where competent bearing strata sits deeper. The pier drives through the expansive clay zone entirely, bypassing the soil that caused the settlement.

Des Moines slab pier projects may need to reach through 45 to 60 feet of glacial till before encountering consistent bearing resistance. The deeper pier depth increases material cost (more steel sections per pier) and installation time. In some Des Moines locations, friction-bearing pier designs are used instead of end-bearing, where the pier derives its support from cumulative friction along the shaft length in dense glacial till rather than from contact with bedrock. The soil conditions that determine the appropriate approach are covered on the foundation science page.

How Are Slab Piers Installed?

Slab pier installation is an interior process that requires access to the concrete floor surface, temporary disruption of the living space, and typically one to three days of work depending on the number of piers. The process follows a sequence designed to minimize damage to the existing slab while establishing permanent load transfer to stable soil below.

1. Interior access preparation. The crew identifies pier locations based on the structural layout, then clears furniture, flooring material, and obstructions from each work zone. Carpet, tile, or laminate is cut and removed in a working radius around each pier location.
2. Concrete coring. A core drill cuts a circular access hole through the slab at each pier location — typically 6 to 8 inches in diameter. The cored concrete plug is removed, exposing the soil beneath the slab. Coring produces concrete dust and noise but does not damage surrounding slab areas.
3. Sub-slab excavation. Soil is excavated beneath each cored hole to create clearance for the slab bracket. The pocket is typically 18 to 24 inches deep, providing enough space to position the bracket beneath the slab edge and begin driving pier sections downward.
4. Slab bracket assembly and placement. A steel bracket is positioned beneath the slab at each pier location. The bracket fits against the underside of the concrete and distributes the lift force across a wider area than the pier shaft alone. Proper bracket seating is critical to avoid stress concentrations that could crack the slab during the lifting phase.
5. Pier driving to bearing strata. Steel pier sections are hydraulically driven through the bracket opening, one at a time, until the pier reaches load-bearing soil or bedrock. The hydraulic ram uses the structure's own weight as resistance to push each section into the ground. Drive resistance is monitored throughout to confirm the pier has reached adequate bearing capacity.
6. Load transfer and synchronized lift. After all piers reach bearing strata, synchronized hydraulic jacks apply controlled upward pressure through each bracket. The slab is lifted toward its original elevation. Lift progress is monitored at multiple points across the slab to ensure even movement and avoid over-lifting at any single pier location.
7. Core hole patching and cleanup. Access holes are filled with non-shrink grout or concrete patch material and finished flush with the surrounding slab surface. The patched areas are structurally sound but remain visible as circular repair marks. Flooring materials can be reinstalled over the patched areas once the grout cures.

How Can You Tell If Slab Piers Were Installed Correctly?

Proper slab pier installation produces measurable, documentable results — and a qualified contractor will provide that documentation without being asked. The most important quality indicator is the drive log: a record of the hydraulic pressure and depth achieved at each pier location. This log confirms that every pier reached adequate bearing capacity and that the load transfer was verified, not assumed.

Pier spacing should follow the structural engineer's layout, not a contractor's standard template. A generic 6-foot spacing pattern may work for one home and be inadequate for another. Proper spacing is determined by the structural loads above each pier location — heavier bearing walls need closer spacing, lighter non-bearing sections need fewer piers. If your contractor installed piers at uniform intervals without referencing the load paths in your specific home, that is a concern worth raising.

Lift measurements at multiple reference points confirm that the slab was raised evenly and to the target elevation. A quality installation includes before-and-after elevation readings taken at each pier location and at midpoints between piers. The readings should show consistent lift across the slab without overcorrection — lifting one area too high while another remains low creates new stress patterns in the concrete.

Warranty documentation should specify what is covered: the pier system, the bracket connections, and the structural performance. A meaningful warranty covers the engineering outcome (the slab stays at grade) rather than just the hardware (the steel does not rust). Ask whether the warranty is transferable to a future buyer — for resale purposes, a transferable structural warranty adds value that a non-transferable warranty does not. For details on typical repair pricing, see the cost and economics page.

Frequently Asked Questions About Slab Piers

What's the difference between foundation settlement and heave?

Settlement occurs when soil beneath a foundation compresses, erodes, or washes away, causing the structure above to sink. Heave is the opposite — soil expands, usually from moisture absorption in expansive clay, and pushes the foundation upward. Both produce cracking and uneven floors because both create differential movement across the foundation footprint. However, the repair approach differs significantly. Settlement is corrected by transferring the structural load past the failing soil with pier systems. Heave is managed through moisture control — drainage correction, root barriers, and soil stabilization — because the soil itself is the active force.

How does frost depth affect foundations in the Midwest?

The frost line in Kansas City sits at approximately 36 inches, while Des Moines reaches 42 inches. Footings must be placed below these depths to avoid frost heave — the upward force created when water in soil freezes and expands. When a footing sits too shallow, each winter freeze lifts one section while adjacent deeper sections remain stationary, producing the differential movement that causes diagonal cracking. Midwest building codes mandate footing placement below the local frost line specifically to prevent this annual cycle of damage.

Why do so many Kansas City homes have foundation problems?

Kansas City sits on the Wymore-Ladoga clay formation, a soil group with 60-80% clay content classified as having very high shrink-swell potential by the USDA-NRCS. This soil expands when wet and contracts when dry, and Kansas City's seasonal rainfall variation — from 5.7 inches in May to roughly 1.5 inches in January — drives repeated volumetric changes beneath the foundation. Each cycle of swelling and shrinking ratchets the soil into a slightly different density and position. Over decades, this produces cumulative settlement. Roughly 28.45% of Kansas City's housing stock is slab-on-grade construction from the 1970s onward, making it particularly susceptible to interior slab settlement.

Can I finance foundation repair?

Most foundation repair contractors offer financing plans, and several third-party home improvement lenders specialize in structural repair. FHA Title I loans cover home improvements up to $25,000 without requiring home equity. Home equity lines of credit are another common option. The critical consideration is that foundation settlement is progressive — a repair deferred typically becomes a larger, more expensive repair later. Financing a timely repair usually costs less in total than paying full price for a larger repair after additional damage has occurred. Visit the cost and economics page for detailed pricing context and financing information.
