Wall Anchors: Stabilizing Bowing Basement Walls

Wall anchors are a mechanical stabilization system that stops basement walls from bowing inward by anchoring them to stable soil located 10 to 15 feet away from the foundation. The system works by connecting a steel plate on the interior basement wall surface to an earth anchor plate buried in undisturbed soil outside the home. A galvanized steel rod running through the wall connects the two plates. When the rod is tensioned, the exterior soil bearing anchor resists the lateral pressure pushing the wall inward, creating a counterforce that holds the wall in its current position.

Wall anchors are the only basement wall stabilization method that can both stop inward movement and gradually straighten the wall back toward its original position over time. After initial installation and anchor rod tensioning, a scheduled tightening protocol applies small incremental force during favorable soil conditions. This progressive wall straightening distinguishes wall anchors from carbon fiber straps or steel beams, which stabilize the wall but cannot reverse existing displacement. For homeowners whose walls have bowed beyond the threshold for carbon fiber reinforcement, wall anchors are often the preferred alternative to full wall replacement.

How Does a Wall Anchor System Actually Work?

A wall anchor system creates a lateral pressure counterforce by mechanically connecting the bowing basement wall to a stable earth mass located well beyond the zone of soil that is pushing the wall inward. The soil immediately adjacent to a basement wall — within 3 to 5 feet — is the soil exerting lateral pressure. The soil 10 to 15 feet away from the wall is undisturbed, stable, and not participating in the pressure cycle. The wall anchor uses that distant stable soil as an anchor point, transferring the stabilizing force through a steel rod back to the wall.

The interior wall plate distributes the anchor rod's holding force across a broad area of the basement wall surface. Without the plate, the rod would concentrate its force on a single point, potentially punching through the masonry. Wall plate distribution spreads the load across roughly 12 to 16 square inches of wall surface, keeping the stress below the masonry's bearing capacity. The plate sits flush against the wall and remains visible in the finished basement as a square steel fixture.

The exterior anchor plate works the same way in reverse — it distributes the pullout force across a wide area of soil so no single point of ground is overloaded. The earth anchor plate is a flat steel plate buried horizontally in undisturbed soil. When the rod is tensioned from inside, the plate pulls against the weight of the soil column above it. The plate must be large enough that the soil's passive resistance exceeds the design load of the system.

Tensioning is the active element that makes wall anchors more than a passive restraint. During initial installation, the anchor rod is tightened to a load that stops the wall from moving further inward. Over subsequent seasons, a technician returns to incrementally increase the tension during periods when soil moisture is low and the lateral pressure on the wall is reduced. This anchor tightening schedule allows the wall to be gradually pulled back toward plumb without overstressing the masonry.

What Problems Do Wall Anchors Fix?

Wall anchors address basement wall bowing caused by lateral earth pressure — the horizontal force that saturated, expanding, or frozen soil exerts against the buried portion of your foundation wall. This is the same force responsible for horizontal cracks in basement walls. Wall anchors are appropriate when the wall has deflected inward beyond the range where surface-applied reinforcement like carbon fiber straps is sufficient, but has not displaced so far that the wall's structural integrity is compromised beyond salvage.

The typical displacement range for wall anchor candidacy is between 1 and 4 inches of inward bow measured at the point of maximum deflection. Below 1 inch, carbon fiber or steel I-beam reinforcement may be sufficient and less invasive. Above 4 inches, the wall has often sustained internal structural damage — fractured block cores, separated mortar joints, or spalled concrete — that makes stabilization unreliable. A structural engineer's assessment determines where a specific wall falls on this spectrum.

Wall anchors also address walls that are rotating inward at the top due to unbalanced backfill pressure above the frost line. This rotation pattern is different from mid-wall bowing and produces diagonal cracking near the top corners of the wall rather than horizontal cracking at mid-height. The anchor placement for top-rotation cases differs from mid-wall bowing cases — anchors are installed higher on the wall to counteract the rotation moment.

What Problems Are Wall Anchors Not Designed to Fix?

Wall anchors do not address foundation settlement — they counteract horizontal force, not vertical sinking. If your home's foundation is settling because the bearing soil beneath the footing is compressing or washing away, the symptoms include stair-step cracks, diagonal cracks, and sloping floors. These are vertical displacement problems that require push piers or helical piers to transfer the building's weight to stable soil at depth.

Wall anchors cannot save a wall that has displaced beyond 4 inches or has sustained severe material deterioration. Block walls with crumbling mortar joints, poured concrete walls with active spalling, and walls where the displacement has broken the structural continuity of the wall cross-section are beyond the repair capability of an anchor system. These walls have lost load-bearing capacity that cannot be restored by pulling them back to plumb. Foundation wall replacement is the appropriate repair at that stage.

Wall anchors do not fix water intrusion caused by poor drainage, failed waterproofing, or hydrostatic uplift pressure beneath the floor slab. While stabilizing a bowing wall may close some crack-line seepage, wall anchors are a structural system, not a waterproofing system. If water management is a primary concern alongside wall stabilization, drainage improvements and interior or exterior waterproofing should be planned concurrently.

When Are Wall Anchors the Right Choice?

Wall anchors are the right choice when basement wall bowing has progressed beyond what surface reinforcement can address but the wall remains structurally viable for stabilization and potential straightening. The decision factors are wall displacement magnitude, wall material condition, exterior soil suitability, and available yard space for anchor plate burial. All four conditions must be favorable for wall anchors to be appropriate.

The exterior soil must be stable enough to resist the anchor plate's pullout force, and the yard must provide 10 to 15 feet of unobstructed distance from the foundation wall. Properties with adjacent sidewalks, driveways, neighboring structures, or utility runs within 10 feet of the affected wall may not have sufficient space for exterior anchor burial. The soil at the anchor depth must also be competent — loose fill, organic soil, or saturated sand may not provide adequate bearing resistance for the earth anchor plate.

Wall anchors are preferred over steel I-beam bracing when the homeowner wants the option of progressive wall straightening rather than stabilization only. Steel I-beams bolted between the basement floor and the floor joists above can stop a wall from moving further inward, but they cannot pull it back. Wall anchors offer the potential for incremental correction over multiple tightening cycles during dry soil conditions.

How Do Kansas City and Des Moines Soil Conditions Affect Wall Anchor Performance?

In Des Moines, where hydrostatic pressure from glacial till is persistent rather than seasonal, wall anchors are the most common wall stabilization method installed by foundation contractors. The glacial till throughout Polk, Dallas, and Warren counties retains moisture effectively, creating year-round lateral pressure against basement walls. This sustained loading means Des Moines basement walls tend to bow gradually and steadily rather than in dramatic seasonal surges. Wall anchors work well against this consistent force because the system's resistance is also constant once installed.

In Kansas City, the shrink-swell cycle creates intermittent lateral pressure — wall anchors must resist peak seasonal force from Wymore-Ladoga clay expansion, particularly in spring when rainfall hits 5.7 inches in May. The KC lateral pressure pattern is more cyclical than Des Moines: clay expands and presses the wall during wet periods, then contracts and partially releases during dry periods. Wall anchors in KC must be engineered for the peak force, not the average force. The anchor tightening schedule in KC is typically performed during late summer dry conditions when the clay has contracted and the wall can be pulled back with less resistance.

Exterior anchor plate depth requirements differ between the two markets due to frost depth. Des Moines has a 42-inch frost depth, requiring anchor plates to be buried below that line to prevent frost heave from displacing the anchor. Kansas City's 36-inch frost depth allows shallower exterior excavation. For detailed information on how these soil profiles create foundation stress, see the soil science page.

How Are Wall Anchors Installed Step by Step?

Wall anchor installation is a one-day process for most residential walls, requiring access to both the interior basement and the exterior yard along the affected wall. The process involves coordinated work inside and outside the home, with the crew typically completing 6 to 10 anchor points in a single day. Here is the installation sequence.

1. Interior wall assessment and layout. The crew marks wall plate locations on the interior basement wall, spacing them 5 to 6 feet apart along the bowing section. Each location is checked for plumbing, electrical, or HVAC obstructions. The spacing is determined by the structural engineer's load calculation for the specific wall geometry and soil pressure.
2. Exterior anchor excavation. Small holes are excavated in the yard 10 to 15 feet from the foundation wall. Each hole reaches 4 to 6 feet below grade — deep enough to place the earth anchor plate in undisturbed soil below the frost line. Equipment access through fence gates, side yards, or around landscaping is coordinated before excavation begins.
3. Core drilling through the foundation wall. A core drill creates a hole through the basement wall at each anchor location. The hole diameter is slightly larger than the anchor rod to allow threading. Drilling produces minimal vibration and does not compromise the wall's remaining structural capacity.
4. Exterior anchor plate placement. A flat steel earth anchor plate is placed horizontally at the bottom of each excavation. The plate sits on undisturbed soil and is oriented perpendicular to the anchor rod's pull direction. Plate sizing is matched to the soil's bearing capacity — lower-capacity soil requires a larger plate.
5. Anchor rod threading and connection. A galvanized steel rod is threaded through the core-drilled hole, extending from the interior wall plate through the wall to the exterior anchor plate. The rod connects to both plates with engineered hardware designed for repeated tensioning cycles over the life of the system.

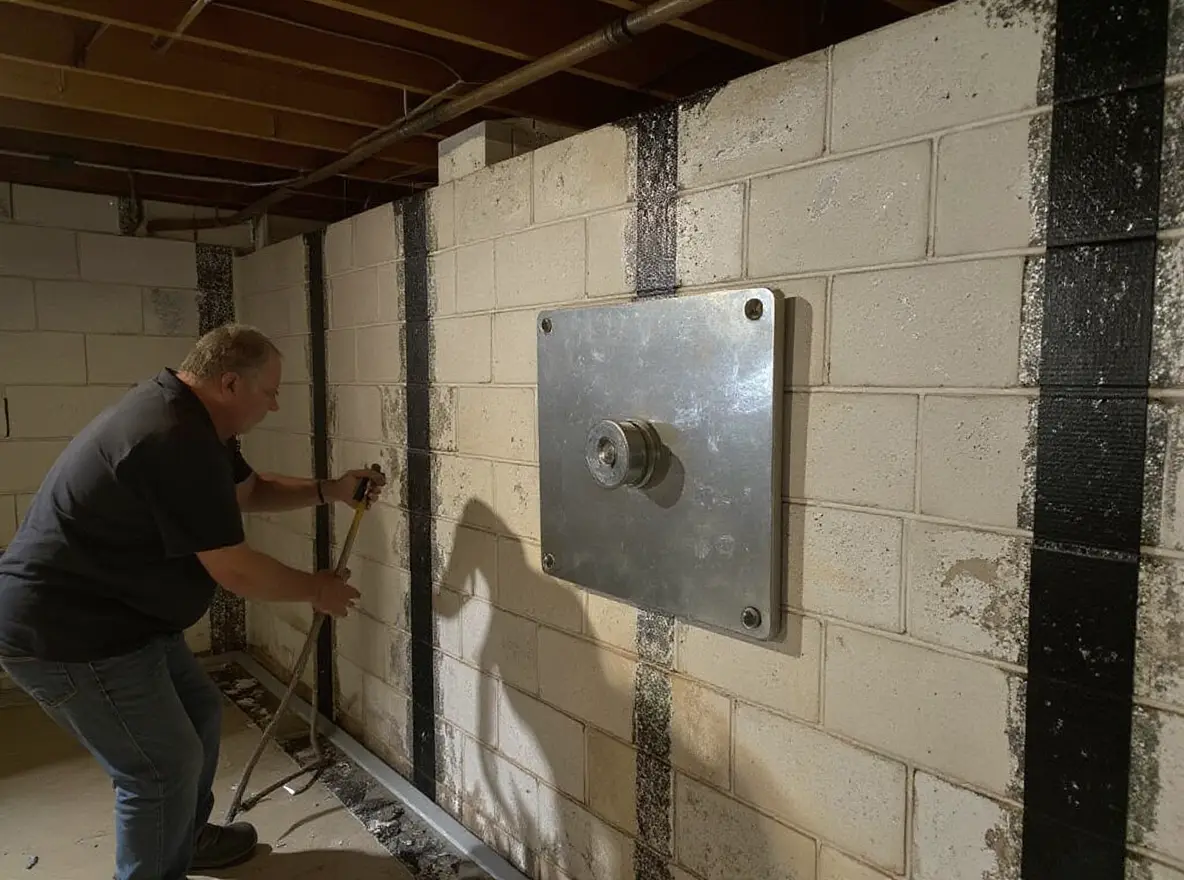

6. Interior wall plate installation and initial tensioning. A steel wall plate is placed against the interior wall surface. The anchor rod is tensioned using a calibrated torque wrench to the engineer's specified load. This initial anchor rod tensioning stabilizes the wall at its current position. The wall plate distribution prevents point-loading the masonry.
7. Backfill, compaction, and site restoration. Exterior excavations are backfilled in compacted lifts and graded to direct surface drainage away from the foundation. Sod or landscaping is restored. Interior wall plates remain visible and accessible — they are the access points for future tightening cycles.

How Can You Tell if a Wall Anchor Installation Was Done Correctly?

A properly installed wall anchor system has specific verifiable characteristics that distinguish quality work from substandard installation. Understanding these indicators helps you evaluate contractor proposals before work begins and verify the finished installation meets engineering standards. Ask the contractor about each of these points during the bid process.

Engineering documentation should precede installation — a structural engineer's report specifying anchor spacing, rod diameter, plate sizing, tensioning loads, and the anchor tightening schedule. Contractors who install wall anchors without an engineer's design are guessing at critical parameters. The engineering report should reference the specific soil conditions at your property and the measured wall deflection.

Anchor rod tensioning should be performed with a calibrated torque wrench, and the applied load at each anchor should be documented in writing. Each anchor point may require a slightly different tension depending on localized wall deflection and soil conditions. The installation report should list the applied torque and equivalent load at every anchor location. This data becomes the baseline for all future tightening cycles.

Exterior excavations should be backfilled in compacted lifts rather than dumped and left to settle naturally. Loose backfill creates a water collection channel next to your foundation — the opposite of what you want after stabilizing a wall against hydrostatic pressure. Compacted backfill with positive surface grading away from the foundation is essential to reducing future lateral loading on the repaired wall.

A written anchor tightening schedule should be part of the installation package — specifying when the contractor will return, how much additional tension will be applied, and under what soil conditions tightening should occur. Progressive wall straightening requires patience and timing. Tightening during wet conditions when the soil is expanded risks overloading the masonry. A responsible contractor schedules tightening during dry periods when the soil has contracted and the wall faces less resistance to correction.

Frequently Asked Questions About Wall Anchors

What is hydrostatic pressure and how does it affect basement walls?

Hydrostatic pressure is the lateral force that water-saturated soil exerts against buried surfaces like basement walls. When soil around a foundation absorbs rainfall or snowmelt, the water fills pore spaces between soil particles and pushes outward in all directions — including horizontally against your basement wall. The force increases with depth, meaning the lower portions of your wall bear greater pressure than the upper portions. In clay-rich soils, hydrostatic pressure can persist for weeks after the last rainfall because clay drains slowly. Wall anchors counteract this force by pulling the wall toward the exterior anchor plate, creating a lateral pressure counterforce that matches or exceeds the soil's inward push.

What foundation problems are most common in Ankeny and West Des Moines?

Ankeny and West Des Moines sit on glacial till that retains moisture persistently, creating sustained hydrostatic pressure against basement walls year-round. The most common structural problems in these suburbs are horizontal cracking at mid-wall height and measurable inward wall bowing. Wall anchors are the most frequently installed stabilization method in the northern Des Moines metro because the lateral pressure is continuous rather than seasonal. Newer subdivisions in Ankeny built on previously agricultural land also experience settlement as disturbed topsoil consolidates under building weight, though wall bowing remains the dominant repair need.

Is foundation repair worth the cost?

Foundation repair protects the single largest asset most families own. Homes with documented, unrepaired structural issues sell for 10 to 15 percent below market value — and some buyers refuse to purchase at any price when active wall bowing is present. Wall anchor installation preserves the existing wall, avoids the far greater expense of full wall replacement, and typically restores full marketability. The repair also stops secondary damage like water intrusion, interior drywall cracking, and floor slope progression. For specific pricing data and economic analysis, see the cost and economics page.

How do I know if a crack in my foundation is serious?

Crack seriousness depends on orientation, location, and whether the crack is associated with wall displacement. Horizontal cracks are always structurally significant because they confirm lateral soil pressure has exceeded the wall's bending capacity. Stair-step cracks through block mortar joints indicate differential settlement. Vertical cracks are often the least concerning — many result from concrete shrinkage during curing. The critical diagnostic question is whether the crack is accompanied by measurable wall movement. A crack with visible wall bowing, floor slope, or door and window binding indicates active structural displacement that will progress without intervention.

Does homeowner's insurance cover foundation repair?

Standard homeowner's insurance policies typically exclude foundation repair caused by soil movement, hydrostatic pressure, or normal settling. Insurance covers sudden and accidental events — a water heater flood that erodes soil beneath a footing, for example — but not gradual deterioration from lateral earth pressure or settlement. Some policies include optional endorsements for foundation coverage, and some state-specific policies in tornado-prone regions cover structural damage from ground movement caused by storms. Review your policy's exclusions section and consult your agent. For a detailed breakdown of insurance coverage scenarios and financing alternatives, see the cost and economics page.
