Chimney Separation: Why Your Chimney Pulls Away from Your Home

Chimney separation is the visible gap between a masonry chimney and the house it was built against, caused by independent footing settlement pulling the two structures apart at different rates. Your chimney and your house sit on separate footings. When soil beneath the chimney footing compresses, erodes, or heaves differently than the soil beneath your main foundation, the chimney moves independently. The gap you see at the roofline, along the siding, or at the flashing line is the measurable result of that differential movement. Chimney separation is not cosmetic — it is structural evidence that one or both footings are in motion.

The severity of chimney separation depends on the gap width, the rate of change, and whether the chimney is tilting or translating straight down. A 1/4-inch gap that appeared ten years ago and has not changed is a different situation than a 1/2-inch gap that was not there last spring. Measuring the gap at multiple points along the chimney-to-house joint tells you whether the chimney is rotating (wider at top than bottom) or sinking uniformly. Both patterns have structural implications, but rotation introduces collapse risk that uniform settlement does not.

What Does Chimney Separation Look Like?

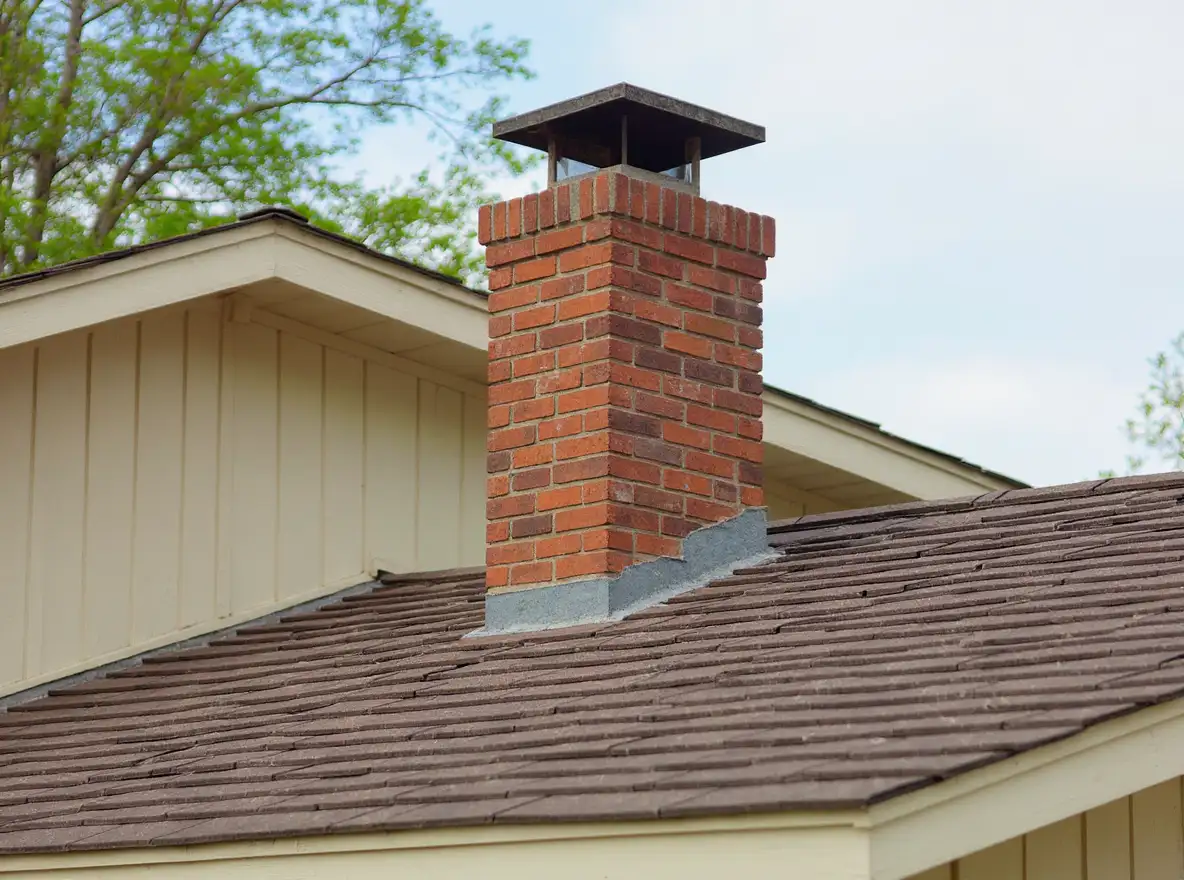

Chimney separation presents as a visible gap between the chimney masonry and the adjacent house wall, most obvious where the chimney meets the roofline. The gap may run the full height of the chimney or appear only at the top. Counterflashing separation — where the metal flashing that seals the chimney-to-roof joint pulls away from the mortar — is often the first visible sign. You may notice daylight through the gap, or water staining on interior walls near the chimney where rain enters the opening.

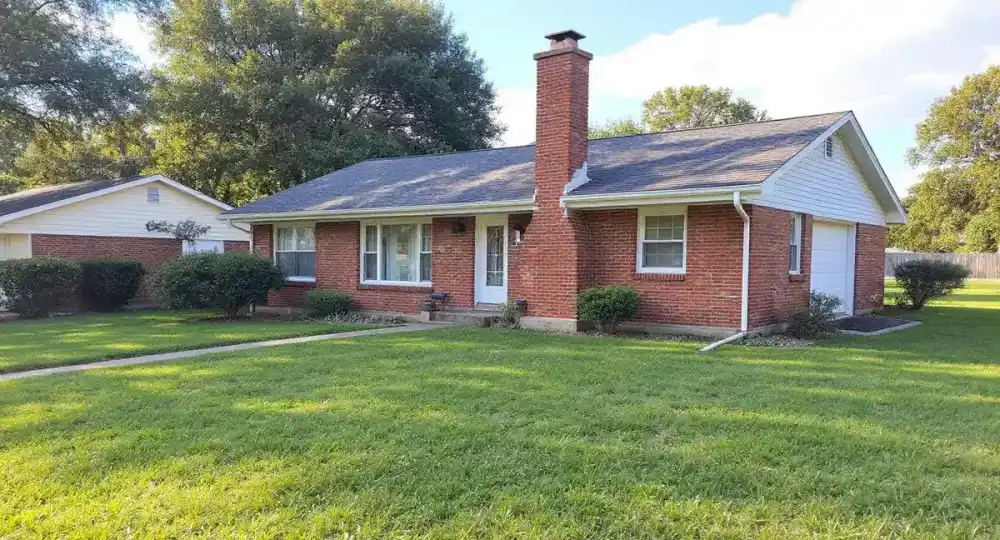

From ground level, chimney tilt is visible as a lean away from the house wall. Stand at the corner of your home and sight along the house wall. The chimney should be parallel to or flush with the wall surface. Any visible lean — even a slight one — indicates the chimney foundation pad has shifted. Use a four-foot level held vertically against the chimney face to measure the tilt angle. A chimney that is 1/2 inch out of plumb over four feet has a measurable structural lean.

Flashing gap progression follows a predictable pattern as separation advances. First, the counterflashing pulls from the mortar joint. Next, step flashing along the chimney side lifts away from the roof deck. Then the gap becomes wide enough for water, insects, and debris to enter. Finally, the masonry ties that once anchored the chimney to the house framing fatigue and fail, leaving the chimney entirely freestanding against the house with no mechanical connection.

Interior clues include cracked plaster or drywall near the chimney chase, water stains on ceilings adjacent to the chimney, and gaps in interior trim where the chimney wall meets the room. If your fireplace has a visible firebox, check whether the damper still operates freely. A tilting chimney can rack the firebox enough to bind the damper mechanism.

Why Does a Chimney Pull Away from a House?

Chimney separation is caused by differential settlement between two independent footings sitting on soil that moves unevenly. Your house footing and your chimney footing were poured at the same time, but they differ in size, depth, and load distribution. The chimney footing is typically smaller and shallower. It bears a concentrated point load from a heavy masonry column. The house footing is wider, deeper, and distributes load across a longer span. When soil conditions change, these two footings respond differently.

Pre-1939 homes in Kansas City — representing 21.56% of the metro housing stock — are most susceptible to chimney separation because the chimney footing is typically shallower and smaller than the main foundation footing, and both sit on Wymore-Ladoga clay with 60 to 80 percent clay content. The shrink-swell cycle of that clay acts on the smaller chimney pad more aggressively because the pad has less bearing area to resist differential movement. Decades of seasonal moisture fluctuation slowly ratchet the chimney position away from the house.

Differential frost heave is a second mechanism, particularly relevant in the Des Moines metro where frost depth reaches 42 inches. If the chimney footing was poured at 24 inches — adequate for the building code at the time of construction but above the modern frost line — ice lens formation beneath the pad pushes the chimney upward each winter while the deeper house footing remains stable. Repeated frost heave cycles produce cumulative upward and outward displacement. For a detailed explanation of how soil behavior drives foundation movement, see the soil science page.

Masonry tie failure accelerates separation once it begins. Metal ties embedded in both the chimney masonry and the house framing are designed to keep the chimney anchored to the structure. Once differential movement exceeds the tie's flex tolerance, the ties bend, fatigue, and break. After tie failure, the chimney is structurally disconnected from the house and moves freely with every soil cycle.

Is Chimney Separation Cosmetic or Structural?

Chimney separation is always structural — it indicates that two independent footings are moving at different rates, and no amount of caulking or mortar patching addresses the cause. Sealing the gap with caulk or tuck-pointing the mortar joint hides the symptom temporarily, but the underlying independent footing settlement continues. The gap will reopen, typically wider than before, because the soil condition driving the movement has not changed.

Gap width and chimney lean measurement determine how urgent the situation is. A gap under 1/4 inch with no measurable chimney tilt is early-stage separation that warrants monitoring and evaluation. A gap over 1/2 inch with visible chimney lean represents advanced separation where the chimney's center of gravity may be shifting beyond its base of support. Chimneys that have separated more than 2 inches from the house wall are at risk of partial or full collapse, especially during high wind events or seismic activity.

The rate of change matters as much as the current gap width. Measure the gap at the top and bottom of the chimney-to-house joint quarterly, using the same seasonal monitoring schedule you would use for foundation cracks: March, June, September, and December. If the gap is widening measurably between seasonal readings, the chimney is in active movement and professional evaluation should not be delayed.

Water infiltration through the separation gap creates secondary damage that compounds the structural concern. Water entering between the chimney and the house wall travels down through wall cavities, soaking insulation, staining drywall, and promoting mold growth. In freezing weather, water that enters the gap and freezes inside the masonry accelerates spalling and mortar joint deterioration, widening the gap faster than soil movement alone would produce.

Chimney separation rarely occurs in isolation because the soil conditions driving chimney footing settlement are acting on the entire foundation system. The differential movement that pulls a chimney away from the house often produces companion symptoms elsewhere in the home. Identifying these related symptoms helps determine whether the chimney alone is moving or whether broader foundation settlement is occurring.

Look for these companion symptoms when chimney separation is present:

Stair-step or diagonal cracks in the basement wall nearest the chimney
Sticking doors or windows on the side of the house where the chimney is located
Sloping floors that tilt toward or away from the chimney corner
Cracked drywall or plaster along the chimney chase on interior walls
Gaps between the chimney breast and the surrounding wall or ceiling trim
Cracked or displaced exterior brick veneer near the chimney base

If multiple symptoms are present on the same side of the house, the underlying cause is likely broader foundation settlement rather than chimney-only movement. A chimney that separates while the rest of the home shows no symptoms suggests the chimney footing alone is failing. A chimney that separates while doors stick, floors slope, and cracks appear in the basement suggests the main foundation is also settling, and the chimney is simply the most visible indicator.

What Should You Do if Your Chimney Is Separating?

Start with measurement and documentation, not repair calls — accurate baseline data makes every subsequent conversation with professionals more productive. Measure the gap width at the top, middle, and bottom of the chimney-to-house joint. Record the date and measurements. Photograph the gap with a ruler or tape measure visible in the frame for scale reference. Check the chimney for plumb using a level. Note whether the lean direction is away from the house, parallel to the house, or a combination of both.

Inspect the chimney base at ground level for signs of footing exposure or soil erosion. Settlement often coincides with soil washing away from the chimney pad due to poor grading or downspout discharge. If you can see the top of the chimney footing above grade, soil erosion has reduced the bearing support around the pad. Redirecting downspouts and correcting grading will not reverse settlement that has already occurred, but it prevents ongoing erosion from making the condition worse.

A structural engineer is the right first call for chimney separation — not a chimney company and not a foundation contractor. A structural engineer provides an independent diagnosis of why the chimney is moving, whether the main foundation is also affected, and what repair approach is appropriate. Their report, typically covering the chimney lean measurement, footing condition assessment, and repair recommendations, becomes the basis for evaluating contractor proposals. For information on evaluation and repair costs, see the cost and economics page.

Do not attempt to fill the separation gap with mortar, caulk, or expanding foam as a repair. These materials mask the visible symptom without addressing the footing movement causing it. The gap will reopen and the filler material will crack or detach, sometimes pulling adjacent brick or siding with it. Worse, filling the gap can trap water inside the wall cavity where it accelerates hidden damage. The gap itself is diagnostic information — keep it visible and measurable until a professional evaluates it.

Repair approaches for chimney separation depend on the diagnosis. If only the chimney footing has settled, helical piers or push piers installed beneath the chimney pad can stabilize and sometimes lift the chimney back toward its original position. If the chimney and the main foundation have both moved, the piering plan must address both structures. If the chimney masonry is severely deteriorated from years of water infiltration through the gap, partial chimney rebuild above the roofline may be necessary in addition to footing stabilization.
