Stair-Step Cracks in Block & Brick Foundations Explained

Stair-step cracks are diagonal fractures that follow the mortar joints in block or brick foundation walls, creating a stepped pattern that resembles a staircase. They are one of the most recognizable signs of differential settlement — a condition where one section of a foundation sinks while an adjacent section remains stable. The crack follows the mortar joints because mortar is weaker than the block or brick units it connects. When settlement forces pull sections of the wall apart, the mortar fails first, and the crack propagates along the path of least resistance in a stepped diagonal line.

Stair-step cracks are classified as moderate-to-severe because they always indicate some degree of foundation movement. Unlike vertical hairline cracks in poured concrete, which may result from normal curing shrinkage, stair-step cracks in masonry walls do not occur without structural movement. The question is not whether movement has occurred, but whether it is ongoing, how far it has progressed, and whether the foundation's bearing capacity has been compromised enough to require intervention.

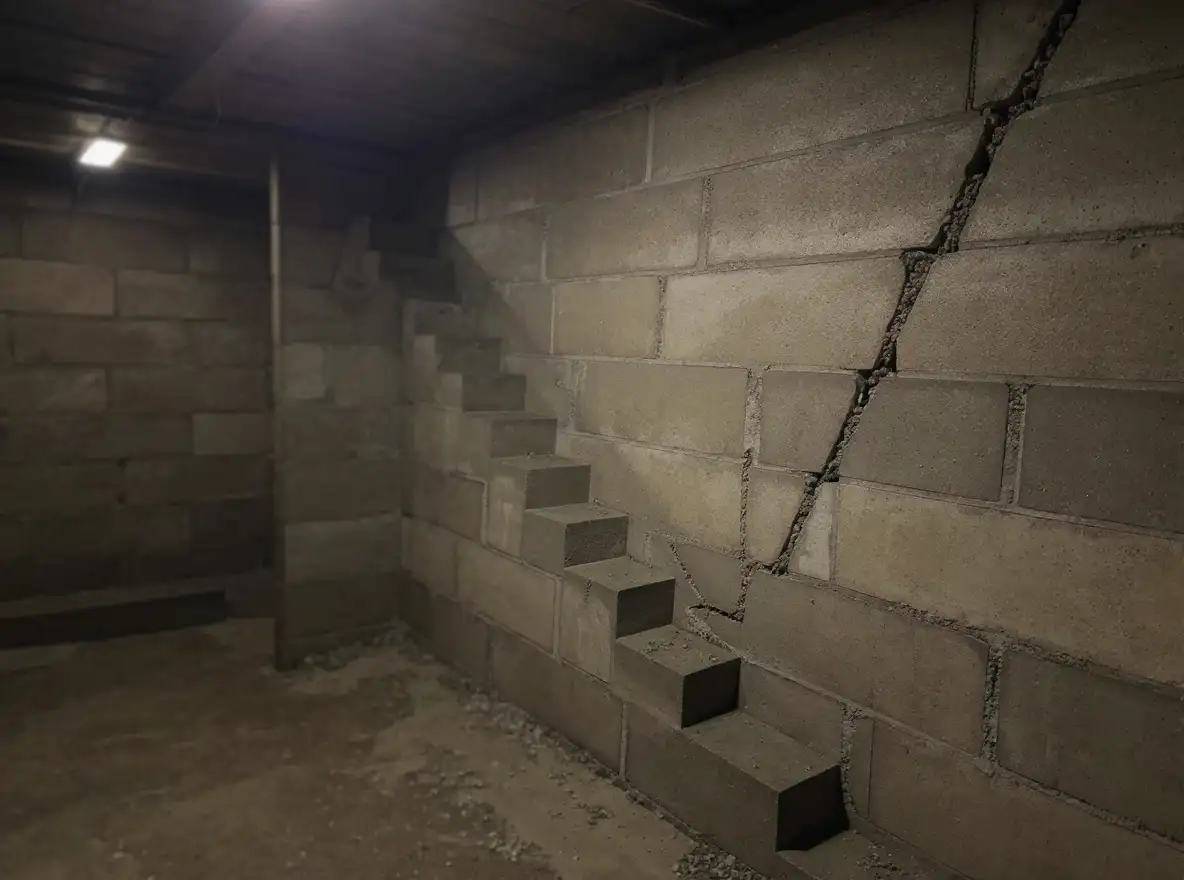

What Does a Stair-Step Crack Actually Look Like?

A stair-step crack creates a zigzag pattern across a block or brick wall, alternating between horizontal mortar joints and vertical (head) joints in a stepping sequence. The crack angle typically falls between 30 and 60 degrees from horizontal. Each "step" corresponds to one block or brick course height horizontally and one head joint vertically. From a distance, the crack appears as a diagonal line. Up close, you can see it following the rectangular grid of mortar joints rather than cutting through the masonry units themselves.

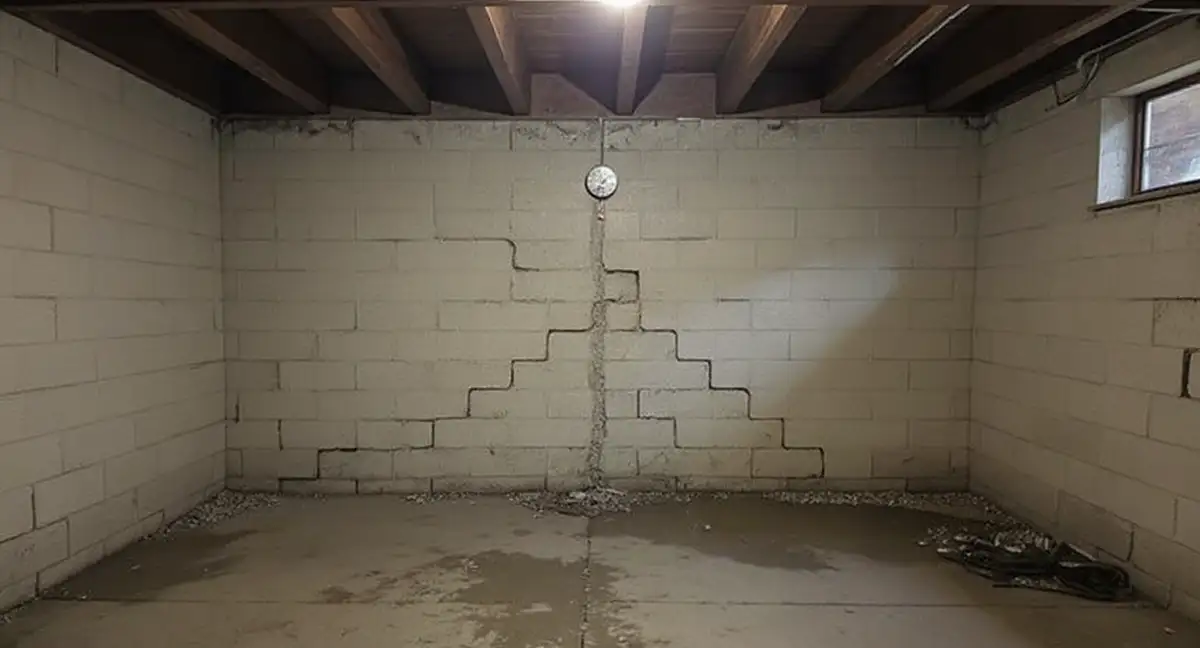

The crack usually originates near the point of maximum settlement and radiates upward and outward toward the corners of the wall. In a typical scenario, the footing beneath the center of a wall section sinks, and the crack steps upward toward both ends. If the settlement is at one end — common when a downspout dumps water next to the foundation — the crack steps upward from the low corner toward the opposite end of the wall. The direction of the stepping pattern reveals where the foundation is dropping.

Width varies along the length of the crack, and this variation is diagnostic. The widest point occurs nearest the area of greatest settlement. As the crack steps away from the settlement zone, it narrows. A crack that measures 3/8 inch at its widest point near a corner and tapers to hairline width six courses up tells you exactly which footing section has moved the most. Measure width at multiple points along the crack to map the settlement pattern.

Block wall displacement is visible when the crack has been active long enough for wall sections to shift relative to each other. Run your hand across the crack face. If one side protrudes farther than the other, the wall has experienced lateral displacement in addition to the separation visible as crack width. Displacement indicates more advanced movement than width alone and changes the structural assessment significantly.

Why Do Stair-Step Cracks Form in Block and Brick Walls?

Stair-step cracks form when differential settlement creates tensile stress across a masonry wall, and the mortar joints fail under that stress before the block or brick units do. Differential settlement means the footing beneath one section of the wall has sunk more than the footing beneath an adjacent section. The wall, which was built as a rigid plane, cannot flex to accommodate uneven support. Instead, it cracks along its weakest structural element — the mortar bond between masonry units.

The underlying cause of the settlement is almost always soil-related. Soil beneath the footing compresses, erodes, or shrinks away, removing the support the footing needs to carry the building load. In Kansas City, the dominant mechanism is the shrink-swell cycle of the Wymore-Ladoga clay complex. During wet seasons, clay expands and supports the footing. During dry seasons, the clay contracts and creates voids beneath the footing. The footing settles into those voids under the weight of the structure. For a detailed explanation of how regional soil conditions drive foundation movement, see the soil science page.

Settlement point loading — concentrated weight bearing on a weakened section of footing — accelerates the cracking process. Sections of footing beneath heavy load concentrations like chimney bases, load-bearing wall intersections, and beam pockets settle faster than lightly loaded sections when soil support weakens. The differential between heavily loaded and lightly loaded footing sections creates the uneven movement that drives stepped crack propagation across the wall.

Footing undermining from water erosion is another frequent cause, particularly at corners where downspouts discharge. Water pooling against the foundation saturates the soil immediately beneath the footing, reducing its bearing capacity. Over time, this localized soil weakness allows the corner footing to settle, and a stair-step crack radiates upward from the corner. Proper drainage management — extending downspouts at least six feet from the foundation and grading soil away from the house — prevents a significant percentage of stair-step crack cases.

Is a Stair-Step Crack Cosmetic or Structural?

Stair-step cracks in masonry foundation walls are always structural to some degree — the relevant question is whether the movement is minor and stable or progressive and worsening. A stair-step crack cannot form without differential settlement occurring. Even a narrow stair-step crack confirms that the footing has moved unevenly. However, settlement sometimes reaches equilibrium — the footing finds a new bearing point in the soil, movement stops, and the crack remains stable indefinitely. Distinguishing between stable and active cracks requires monitoring over time.

Severity by Crack Width

Under 1/8 inch: Minor differential settlement has occurred. Monitor quarterly with dated pencil marks and photographs. If the crack remains stable through a full annual cycle, the settlement may have reached equilibrium.
1/8 to 1/4 inch: Moderate settlement. The footing has displaced enough to create visible mortar joint failure across multiple courses. Professional evaluation is recommended to determine whether the movement is ongoing.
1/4 to 1/2 inch: Significant settlement. The masonry bond failure pattern extends across a substantial area of the wall. Active monitoring should be supplemented with a structural engineer's evaluation.
Over 1/2 inch: Major differential settlement has occurred. Wall sections have displaced enough to compromise the structural load path. Professional evaluation should be scheduled promptly. Repair is almost certainly required.

Crack progression rate matters as much as current width. A 1/4-inch crack that has been stable for several years is less urgent than a 1/8-inch crack that appeared two months ago and has already grown. Mark the crack endpoints and width with dated pencil lines, then recheck monthly for three months and quarterly after that. Growing cracks indicate active settlement that will continue worsening with each seasonal soil cycle.

In Kansas City, 30.72 percent of the housing stock was built during the 1940s through 1960s using concrete block foundations — the construction type most vulnerable to stair-step cracking. Block walls rely entirely on mortar bond strength to resist differential settlement forces. Poured concrete walls, by contrast, distribute tensile stress across a monolithic slab. If your home falls in this era and uses block construction, stair-step cracks should be monitored more carefully than in newer poured-wall homes.

The differential settlement that produces stair-step cracks also produces a cascade of secondary symptoms throughout the structure above. When one section of the foundation drops relative to another, every structural connection tied to that section — floor joists, wall studs, door frames, window frames — moves with it. The symptoms appear on different floors and in different rooms, but they all trace back to the same uneven foundation support.

Look for these companion symptoms alongside stair-step cracks:

Doors that stick at the top on one side — the frame has racked out of square as the wall it sits in tilts with the settling foundation
Floors that slope toward the settling section — a marble placed on the floor rolls consistently toward the area of greatest settlement
Gaps between the wall and ceiling on the side opposite the settlement — as the foundation drops, it pulls the wall down and away from the ceiling framing
Drywall cracks radiating from the upper corners of door and window frames — these are stress concentration points where framing movement creates the highest strain
Chimney pulling away from the house — chimneys on independent footings settle at different rates than the main foundation

Multiple symptoms appearing together strengthen the case that active foundation movement is occurring. A single stair-step crack in isolation could be old and stable. A stair-step crack combined with sticking doors, sloping floors, and fresh drywall cracks upstairs indicates a pattern of ongoing differential settlement that warrants professional evaluation.

What Should You Do When You Find Stair-Step Cracks?

Start with documentation, not panic — most stair-step cracks do not require emergency response, but all of them require informed assessment. The first step is to establish a monitoring baseline so you can determine whether the crack is stable or progressing. Then evaluate whether drainage issues around the foundation are contributing to the settlement. Only after you have monitoring data and have addressed any obvious water management problems should you consider whether professional evaluation is needed.

Step 1: Document the Crack

Photograph the full length of the crack with a ruler or coin held against the wall for scale. Mark both endpoints of the crack with short pencil lines perpendicular to the crack direction, and write the date next to each mark. Measure the width at three to five points along the crack length using a crack width gauge or by photographing against a ruler. Record all measurements with dates. This baseline allows you to detect any future growth with certainty.

Step 2: Check Drainage and Grading

Walk the exterior perimeter of the home and evaluate where water goes when it rains. Downspouts should discharge at least six feet from the foundation. The soil grade should slope away from the house at a minimum of six inches over the first ten feet. Look for areas where water pools against the foundation wall — these are the locations most likely to experience footing undermining. Correcting drainage problems will not reverse existing settlement, but it can stop the settlement from progressing further.

Step 3: Monitor Through One Full Seasonal Cycle

Recheck your pencil marks and width measurements quarterly — March, June, September, and December — to capture the full range of seasonal soil movement. Twelve months of stable readings across all four seasons provides reasonable confidence that the settlement has reached equilibrium. If the crack grows at any point during the monitoring period, the settlement is active, and professional evaluation is the appropriate next step.

Step 4: Get an Independent Structural Evaluation

A structural engineer provides a diagnosis that is not tied to selling you a specific repair product. Their evaluation produces a written report documenting the failure mode, the severity of movement, and recommendations for repair or continued monitoring. This report is valuable for evaluating contractor proposals, supporting insurance inquiries, and documenting the condition for future real estate transactions. For information about evaluation and repair costs, see the cost and economics page.

Frequently Asked Questions About Stair-Step Cracks

What's the difference between foundation settlement and heave?: Settlement occurs when soil beneath the footing compresses or erodes, causing the foundation to sink downward. Heave is the opposite — expansive clay soil absorbs water and swells upward, pushing the foundation above its original position. Both produce cracks, but the crack patterns differ. Settlement cracks widen at the top in walls where the footing drops away. Heave cracks widen at the bottom as soil pushes upward. In Kansas City, seasonal cycles produce both forces at different times of year.
Can I sell my house with foundation problems?: You can sell a home with foundation problems, but disclosure is legally required in both Missouri and Iowa. Undisclosed foundation defects discovered after closing create legal liability for the seller. Homes with documented foundation issues typically sell at a discount reflecting the estimated repair cost, though homes with completed, warrantied repairs often recover most of that value. Getting a structural engineer's report before listing gives buyers confidence in the scope and cost of the issue.
How does frost depth affect foundations in the Midwest?: Frost depth determines how deep footings must be placed to avoid frost heave. In Kansas City, the frost line sits at 36 inches. In Des Moines, it reaches 42 inches. Footings placed above the frost line are vulnerable to uplift when soil freezes and expands. Older homes built before modern code requirements sometimes have shallow footings that experience seasonal heave-settlement cycles, gradually degrading the foundation over decades.
Why do so many Kansas City homes have foundation problems?: Kansas City sits on the Wymore-Ladoga soil complex, which contains 60 to 80 percent clay and carries a 'very high' shrink-swell rating from the USDA. This expansive clay expands when wet and contracts when dry, creating seasonal soil movement that acts directly on foundations. Combine that with significant rainfall variation — from over 5 inches in May to under 2 inches in January — and the result is persistent foundation stress that affects homes across the metro, regardless of age or construction quality.
How long does foundation repair last?: The longevity of foundation repair depends on the method and the underlying soil conditions. Steel push piers driven to load-bearing bedrock or stable strata are considered permanent — they bypass the problem soil entirely. Helical piers installed to appropriate depth and torque carry similar long-term expectations. Wall anchors and carbon fiber straps stabilize walls against further movement but do not reverse existing displacement. Most reputable contractors offer 25-year to lifetime transferable warranties on piering systems.
